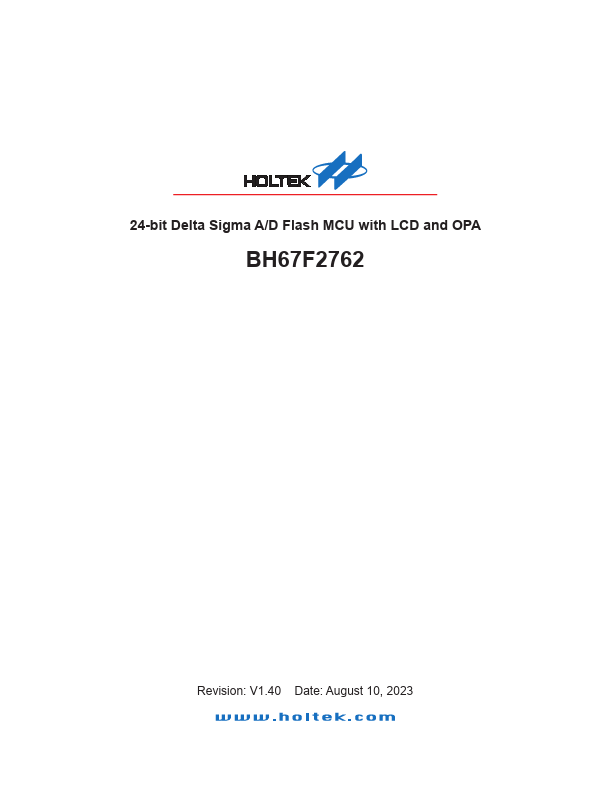

BH67F2762
BH67F2762 is 24-bit Delta Sigma A/D Flash MCU manufactured by Holtek Semiconductor.

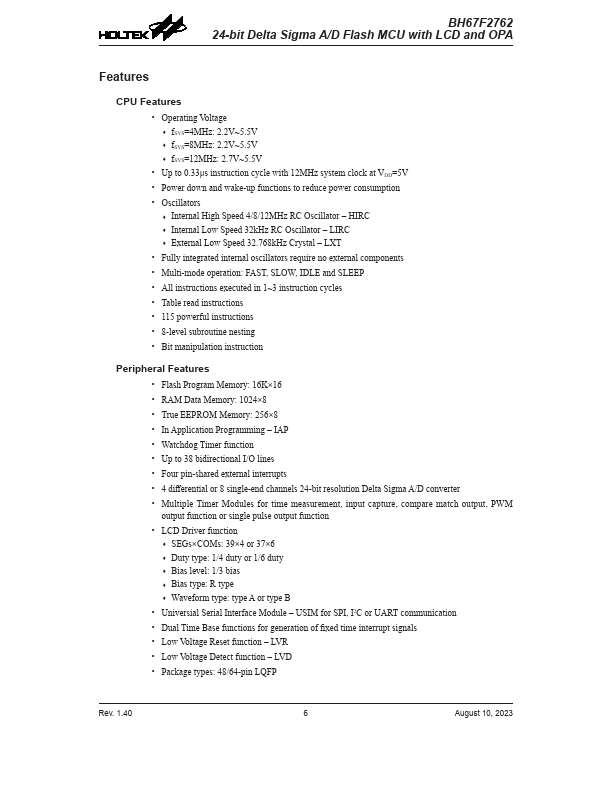

Features
CPU Features
- Operating Voltage
- f SYS=4MHz: 2.2V~5.5V
- f SYS=8MHz: 2.2V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- Up to 0.33μs instruction cycle with 12MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillators
- Internal High Speed 4/8/12MHz RC Oscillator
- HIRC
- Internal Low Speed 32k Hz RC Oscillator
- LIRC
- External Low Speed 32.768k Hz Crystal
- LXT
- Fully integrated internal oscillators require no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 16K×16
- RAM Data Memory: 1024×8
- True EEPROM Memory: 256×8
- In Application Programming
- IAP
- Watchdog Timer function
- Up to 38 bidirectional I/O lines
- Four pin-shared external interrupts
- 4 differential or 8 single-end channels 24-bit resolution Delta Sigma A/D converter
- Multiple Timer Modules for time measurement, input capture, pare match output, PWM output function or single pulse output function
- LCD Driver function
- SEGs×s: 39×4 or 37×6
- Duty type: 1/4 duty or 1/6 duty
- Bias level: 1/3 bias
- Bias type: R type
- Waveform type: type A or type B
- Universial Serial Interface...
