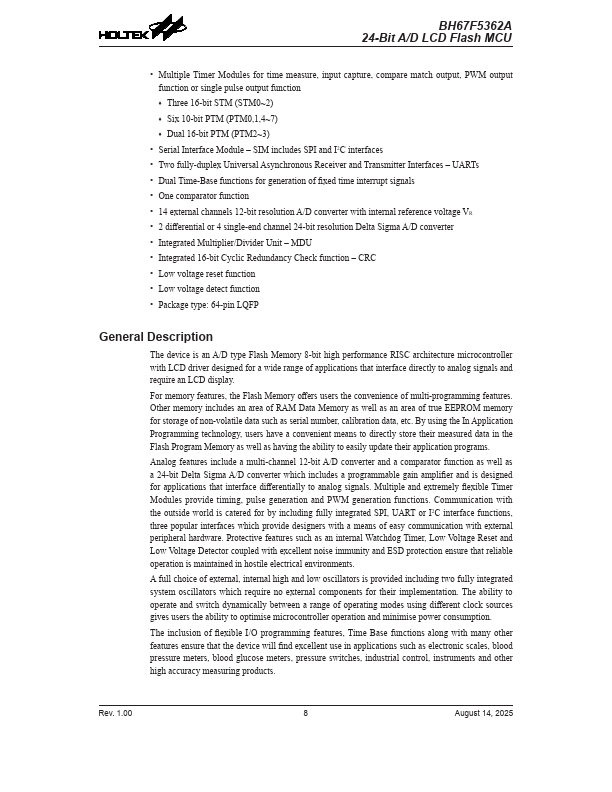

BH67F5362A Description
The device is an A/D type Flash Memory 8-bit high performance RISC architecture microcontroller with LCD driver designed for a wide range of applications that interface directly to analog signals and require an LCD display.

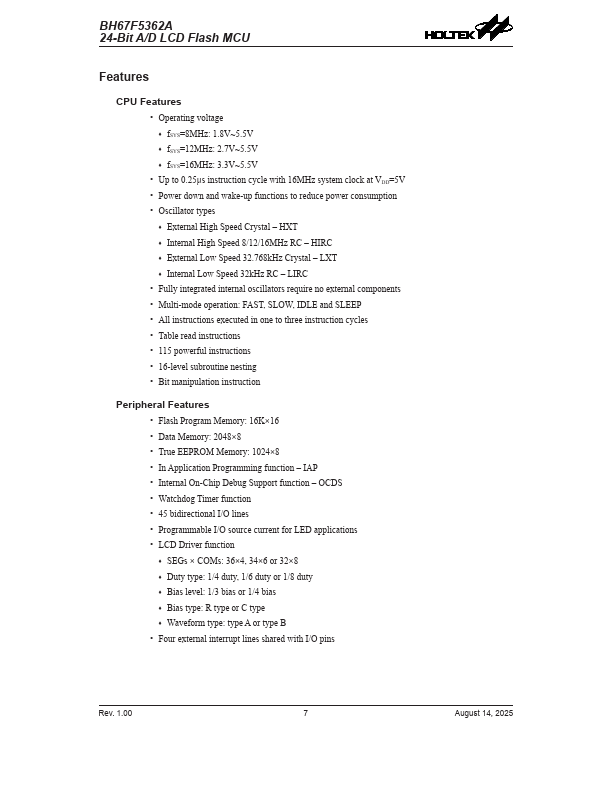

BH67F5362A Key Features
- Operating voltage
- fSYS=8MHz: 1.8V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- Internal High Speed 8/12/16MHz RC
- External Low Speed 32.768kHz Crystal
