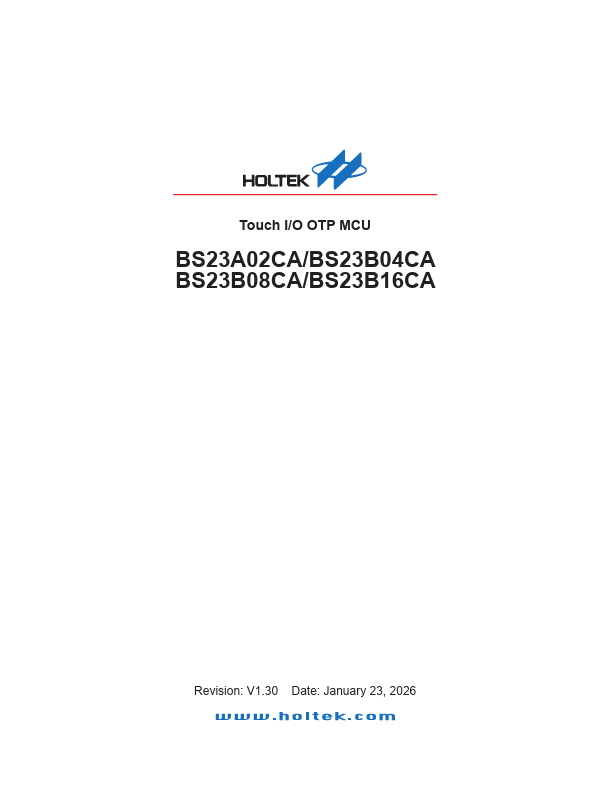

BS23A02CA Overview

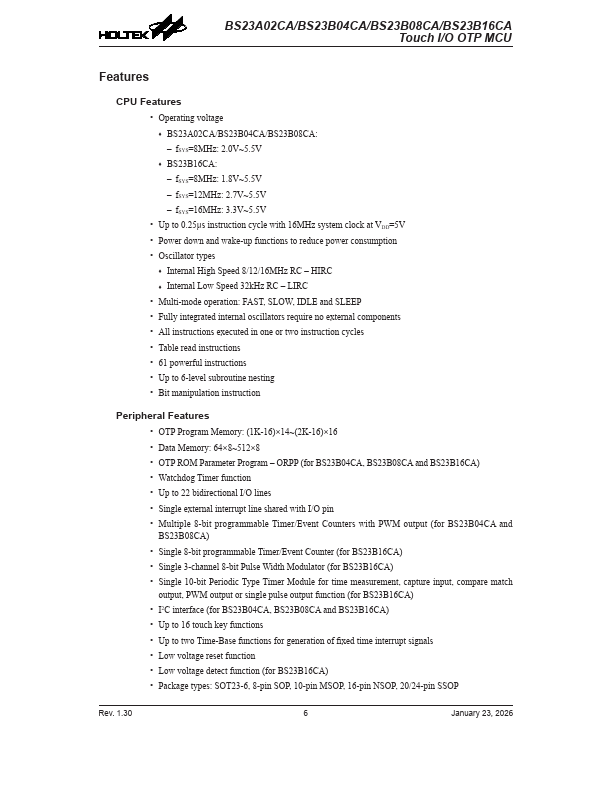

Key Features
- Operating voltage
- BS23A02CA/BS23B04CA/BS23B08CA: – fSYS=8MHz: 2.0V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8/12/16MHz RC – HIRC
- Internal Low Speed 32kHz RC – LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external components
- All instructions executed in one or two instruction cycles
