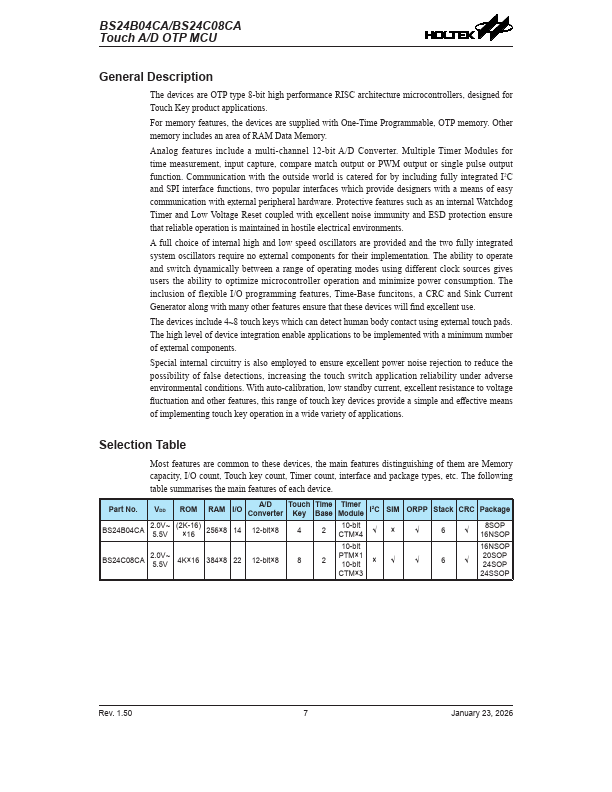

BS24B04CA Description
The devices are OTP type 8-bit high performance RISC architecture microcontrollers, designed for Touch Key product applications.

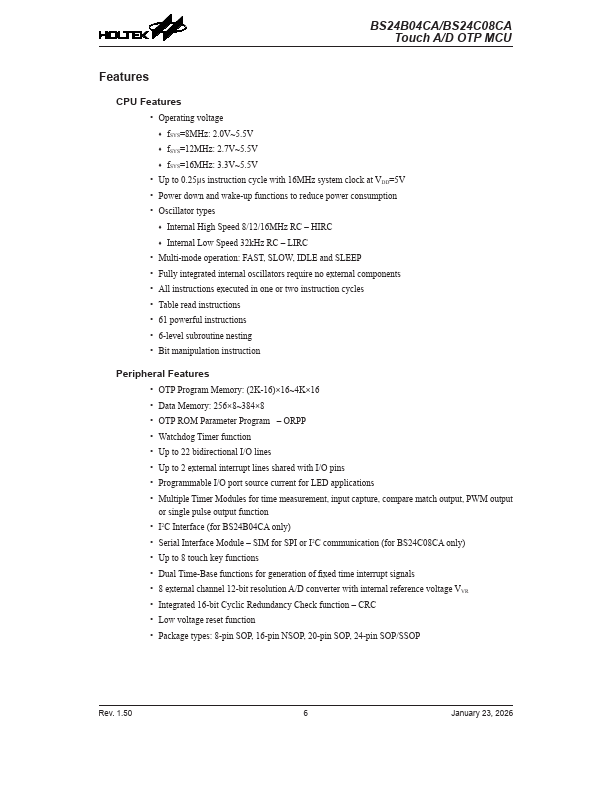

BS24B04CA Key Features
- Operating voltage
- fSYS=8MHz: 2.0V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8/12/16MHz RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
BS24B04CA Applications
- Multiple Timer Modules for time measurement, input capture, pare match output, PWM output or single pulse output function
- I2C Interface (for BS24B04CA only)
