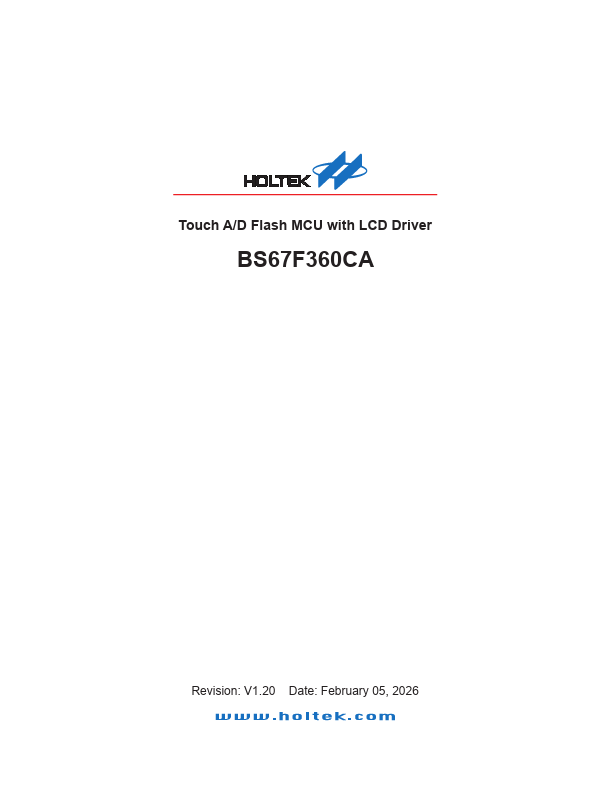

BS67F360CA
BS67F360CA is Touch A/D Flash MCU manufactured by Holtek Semiconductor.
Features
CPU Features
- Holtek Tiny Power TM Technology
- Operating voltage
- f SYS=8MHz: 1.8V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- f SYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8/12/16MHz RC
- HIRC
- External Low Speed 32.768k Hz Crystal
- LXT
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 16-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 16K×16
- Data Memory: 1024×8
- True EEPROM Memory: 1024×8
- In Application Programming function
- IAP
- 128-bit unique ID
- Watchdog Timer function
- Up to 59 bidirectional I/O lines
- Programmable I/O port source current for LED driving applications
- 2 external interrupt lines shared with I/O pins
- 7 Timer Modules for time measure, input capture, pare match output, PWM output function or single pulse output function
- Three 10-bit pact Type TMs
- One 16-bit Standard Type TM
- Three 10-bit Periodic Type TMs (PTM1 supports plementary PWM output with dead time control)
- Serial Interface Module
- SIM includes SPI and I2C...
