BS83A01C Datasheet | Holtek Semiconductor

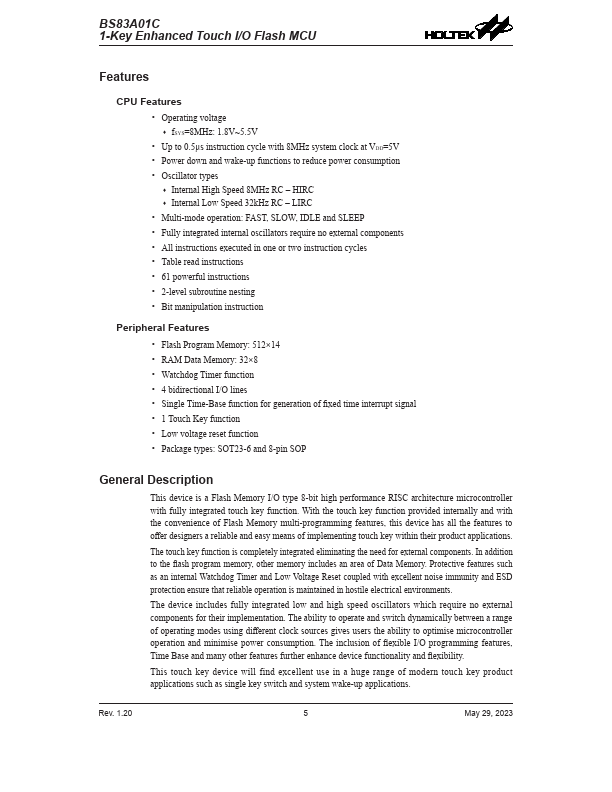

Features CPU Features - Operating voltage - f SYS=8MHz: 1.8V~5.5V - Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator types - Internal High Speed 8MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - All instructions executed in one or two instruction cycles - Table read instructions - 61 powerful instructions - 2-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 512×14 - RAM Data Memory: 32×8 - Watchdog Timer function - 4 bidirectional I/O lines - Single Time-Base function for generation of fixed time interrupt signal - 1 Touch Key function - Low voltage reset function - Package types: SOT23-6 and 8-pin SOP General Description This device is a Flash Memory I/O type 8-bit high performance RISC architecture microcontroller with fully integrated touch key function. With the touch key function provided internally and with the convenience of Flash Memory multi-programming features , this device has all the features to offer designers a reliable and easy means of implementing touch key within their product applications. The touch key function is pletely integrated eliminating the need for external ponents. In addition to the flash program memory, other memory includes an area of Data Memory. Protective features such as an internal Watchdog Timer and Low Voltage Reset coupled with excellent noise immunity and ESD protection ensure that reliable operation is maintained in hostile electrical environments. The device includes fully integrated low and high speed oscillators which require no external ponents for their implementation. The ability to operate and switch dynamically between a range of operating modes using different clock sources gives users the ability to optimise microcontroller operation and minimise power...
