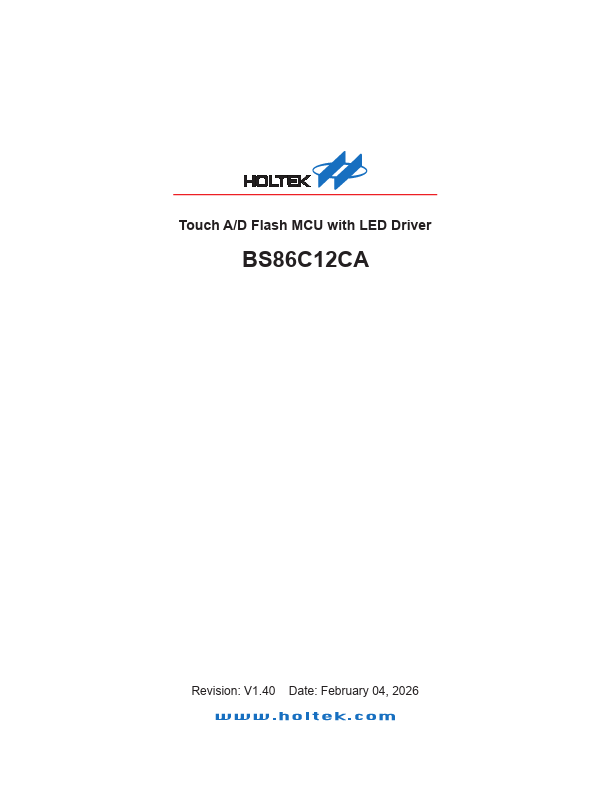

BS86C12CA
BS86C12CA is Touch A/D Flash MCU manufactured by Holtek Semiconductor.
Touch A/D Flash MCU with LED Driver
Revision: V1.40 Date: February 04, 2026
BS86C12CA Touch A/D Flash MCU with LED Driver

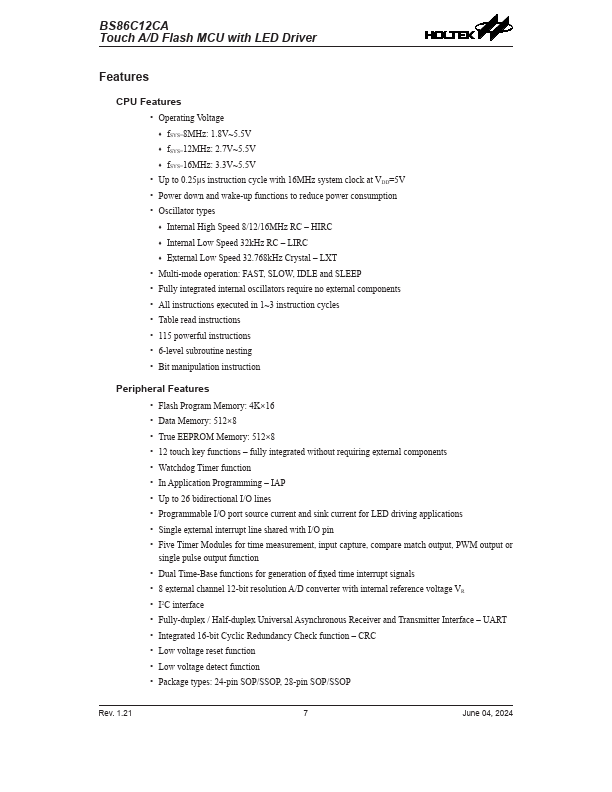

Features
CPU Features
- Operating Voltage
- f SYS=8MHz: 1.8V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- f SYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8/12/16MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- External Low Speed 32.768k Hz Crystal
- LXT
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 6-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 4K×16
- Data Memory: 512×8
- True EEPROM Memory: 512×8
- 12 touch key...
