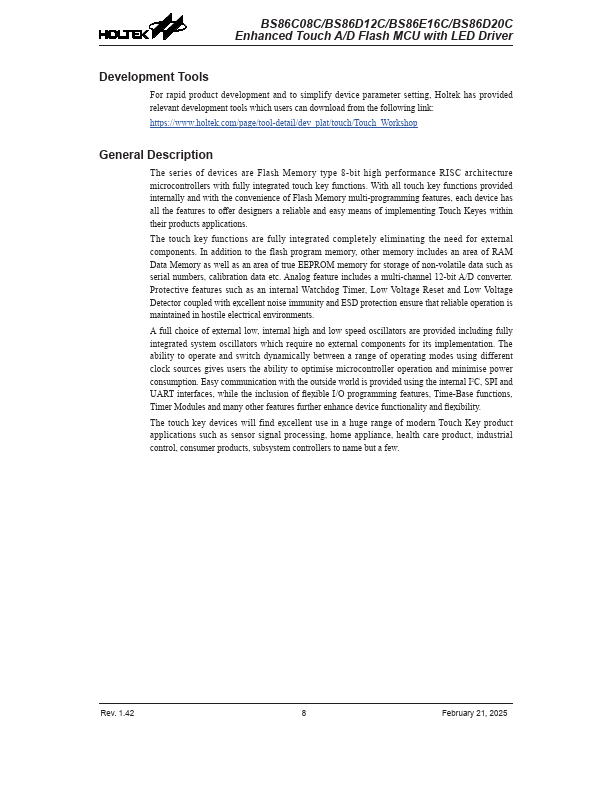

BS86D20C Description
The series of devices are Flash Memory type 8-bit high performance RISC architecture microcontrollers with fully integrated touch key functions. With all touch key functions provided internally and with the convenience of Flash Memory multi-programming.
BS86D20C Key Features
- Operating Voltage
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8/12/16MHz RC
- Internal Low Speed 32kHz RC
- External Low Speed 32.768kHz Crystal
