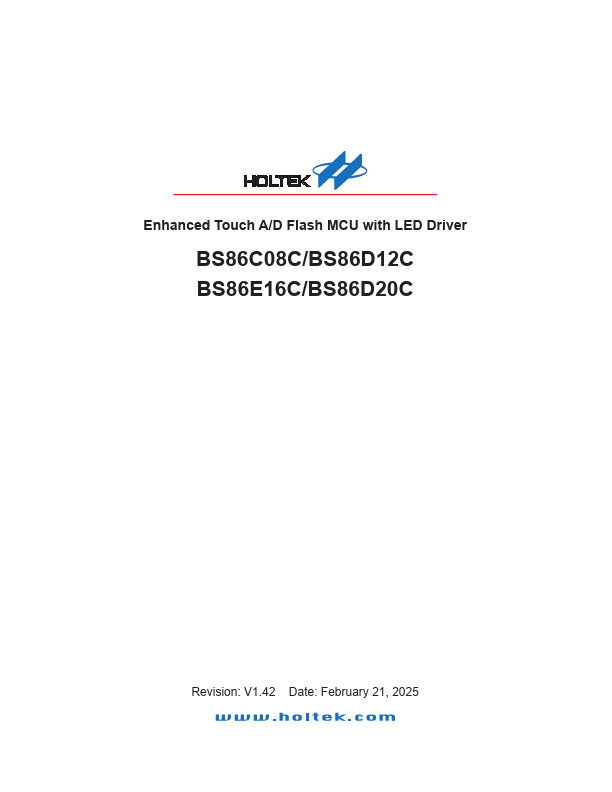

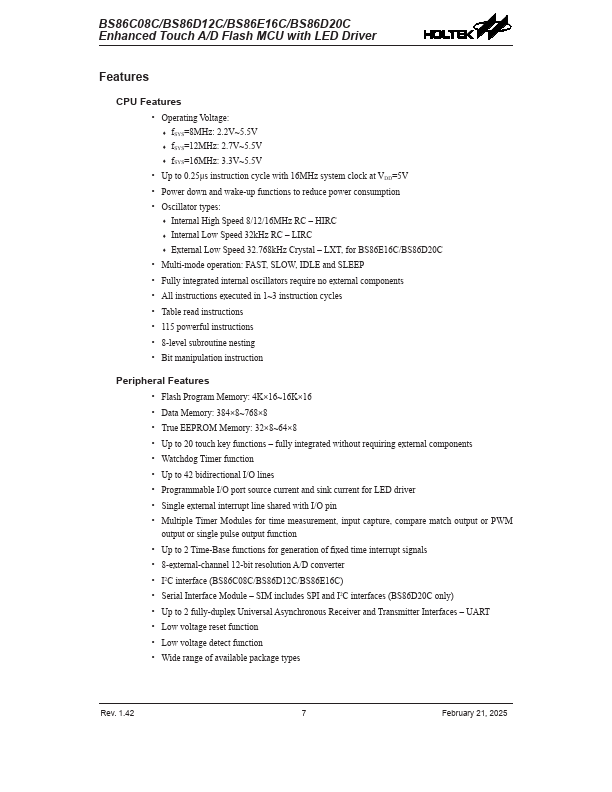

Enhanced Touch A/D Flash MCU with LED Driver BS86C08C/BS86D12C BS86E16C/BS86D20C Revision: V1.42 Date: February 21, 2025 BS86C08C/BS86D12C/BS86E16C/BS86D20C Enhanced Touch A/D Flash MCU with LED Driver Features CPU Features - Operating Voltage: - f SYS=8MHz: 2.2V~5.5V - f SYS=12MHz: 2.7V~5.5V - f SYS=16MHz: 3.3V~5.5V - Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator types: - Internal High Speed 8/12/16MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - External Low Speed 32.768k Hz Crystal - LXT, for BS86E16C/BS86D20C - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - All instructions executed in 1~3 instruction cycles - Table read instructions - 115 powerful instructions - 8-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 4K×16~16K×16 - Data Memory: 384×8~768×8 - True EEPROM Memory:...
