HT32F49163 Overview
Description

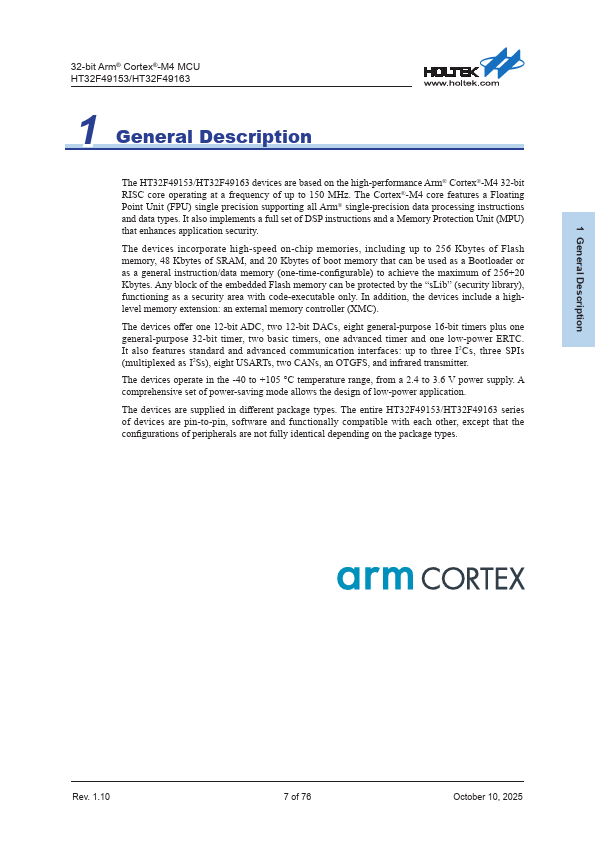

32-bit Arm® Cortex®-M4 MCU HT32F49153/HT32F49163 1 General Description The HT32F49153/HT32F49163 devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 150 MHz. The Cortex®-M4 core features a Floating Point Unit (FPU) single precision supporting all Arm® single-precision data processing instructions and data types.

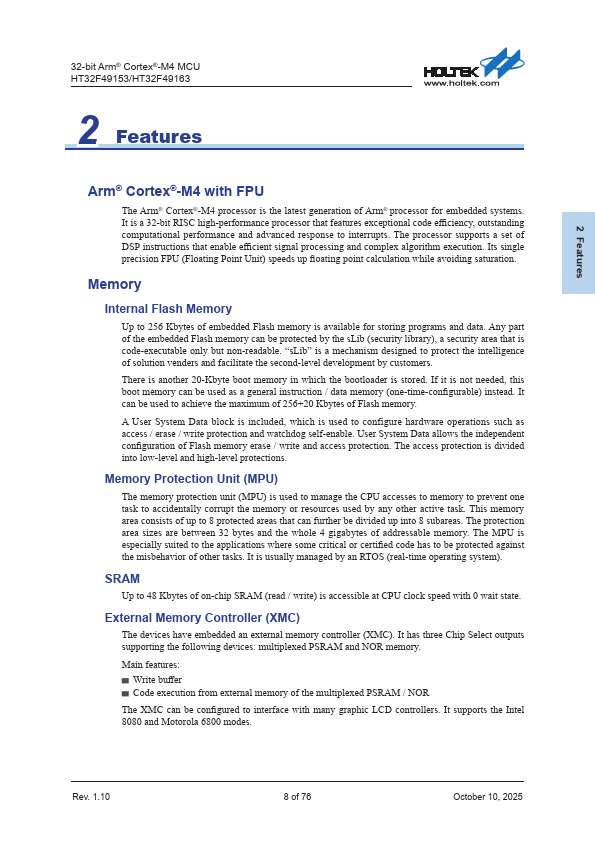

Key Features
- a Floating Point Unit (FPU) single precision supporting all Arm® single-precision data processing instructions and data types
- It also implements a full set of DSP instructions and a Memory Protection Unit (MPU) that enhances application security
- In addition, the devices include a highlevel memory extension: an external memory controller (XMC)
- The devices operate in the -40 to +105 °C temperature range, from a 2.4 to 3.6 V power supply
- A comprehensive set of power-saving mode allows the design of low-power application
