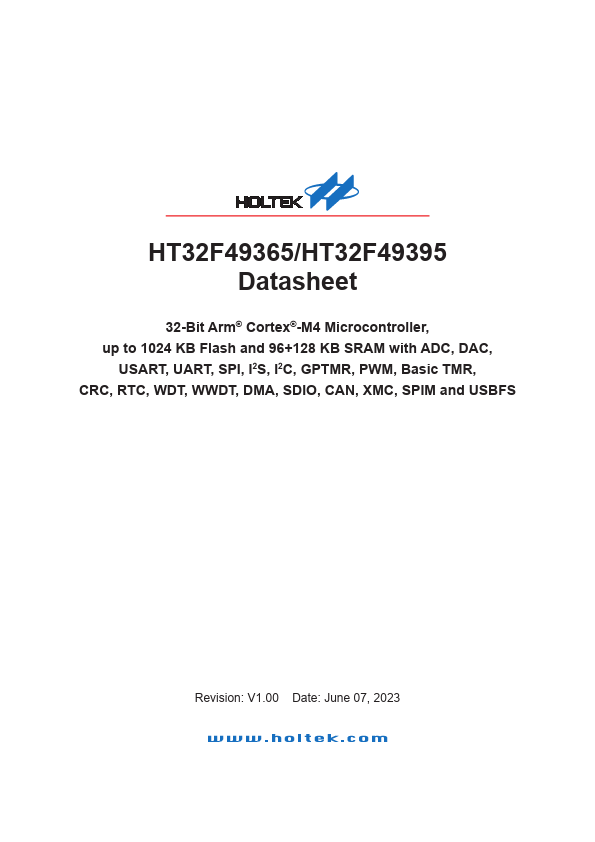

HT32F49395 Overview
Description

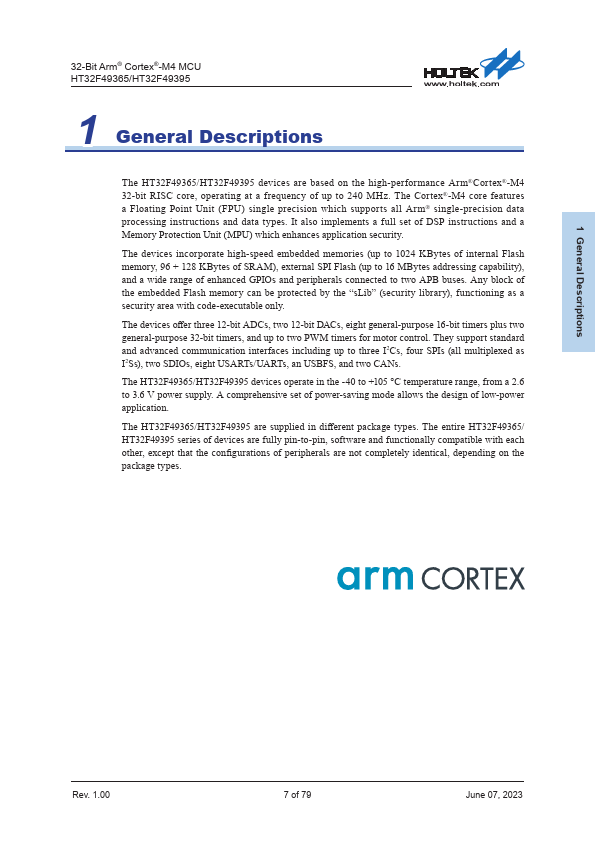

32-Bit Arm® Cortex®-M4 MCU HT32F49365/HT32F49395 1 General Descriptions The HT32F49365/HT32F49395 devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core, operating at a frequency of up to 240 MHz. The Cortex®-M4 core features a Floating Point Unit (FPU) single precision which supports all Arm® single-precision data processing instructions and data types.
Key Features
- a Floating Point Unit (FPU) single precision which supports all Arm® single-precision data processing instructions and data types
- It also implements a full set of DSP instructions and a Memory Protection Unit (MPU) which enhances application security
- The HT32F49365/HT32F49395 devices operate in the -40 to +105 °C temperature range, from a 2.6 to 3.6 V power supply
- A comprehensive set of power-saving mode allows the design of low-power application
- The HT32F49365/HT32F49395 are supplied in different package types
