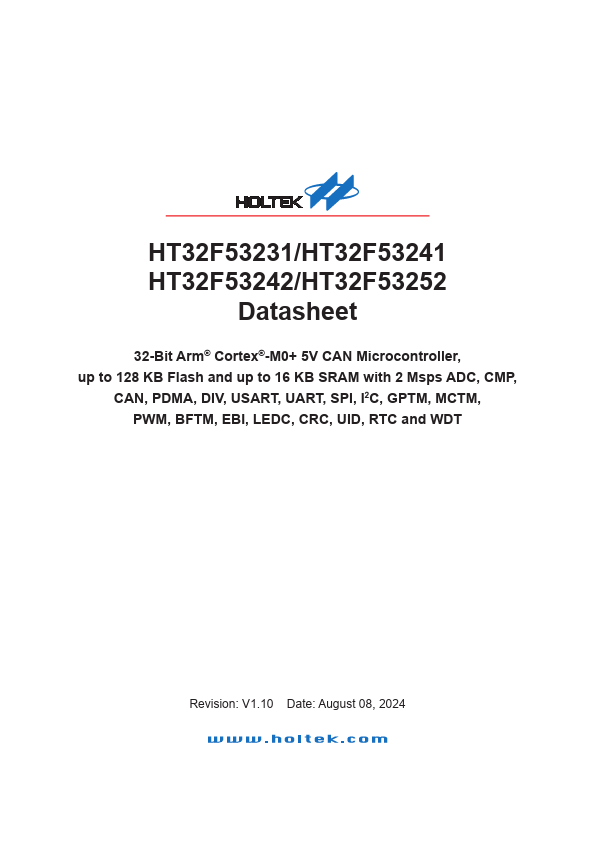

HT32F53242 Datasheet | Holtek Semiconductor

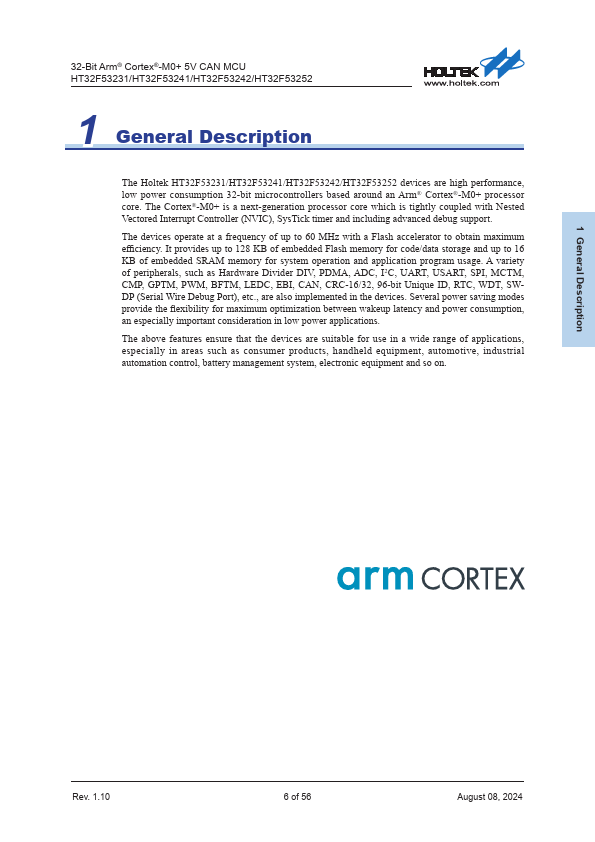

Description The Holtek HT32F53231/HT32F53241/HT32F53242/HT32F53252 devices are high performance, low power consumption 32-bit microcontrollers based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a next-generation processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer and including advanced debug support. The devices operate at a frequency of up to 60 MHz with a Flash accelerator to obtain maximum efficiency. It provides up to 128 KB of embedded Flash memory for code/data storage and up to 16 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as Hardware Divider DIV, PDMA, ADC, I2C, UART, USART, SPI, MCTM, CMP, GPTM, PWM, BFTM, LEDC, EBI, CAN, CRC-16/32, 96-bit Unique ID, RTC, WDT, SWDP (Serial Wire Debug Port), etc., are also implemented in the devices. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The above features ensure that the devices are suitable for use in a wide range of applications, especially in areas such as consumer products, handheld equipment, automotive, industrial automation control, battery management system, electronic equipment and so on. 1 General Description Rev. 1.10 6 of 56 August 08, 2024 2 Features 32-Bit Arm® Cortex®-M0+ 5V CAN MCU HT32F53231/HT32F53241/HT32F53242/HT32F53252 2 Features Core ▆ 32-bit Arm® Cortex®-M0+ processor core ▆ Up to 60 MHz operating frequency ▆ Single-cycle multiplication ▆ Integrated Nested Vectored Interrupt Controller (NVIC) ▆ 24-bit Sys Tick timer The Cortex®-M0+ processor is a very low gate count, highly energy efficient processor that is intended for microcontroller and deeply embedded applications that require an area optimized, low-power processor. The processor is based on the ARMv6-M architecture and supports Thumb® instruction sets,...
