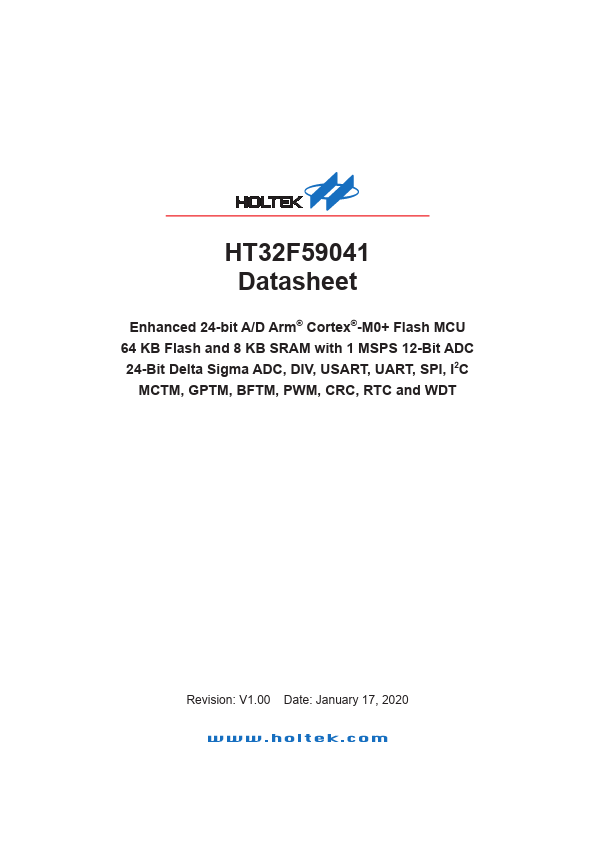

HT32F59041 Datasheet Enhanced 24-bit A/D Arm® Cortex®-M0+ Flash MCU 64 KB Flash and 8 KB SRAM with 1 MSPS 12-Bit ADC 24-Bit Delta Sigma ADC, DIV, USART, UART, SPI, I2C MCTM, GPTM, BFTM, PWM, CRC, RTC and WDT Revision: V1.00 Date: January 17, 2020 1 General Description Enhanced 24-bit A/D Arm® Cortex®-M0+ MCU HT32F59041 1 General Description The Holtek HT32F59041 device is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a nextgeneration processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer, and including advanced debug support. The device operates at a frequency of up to 20 MHz with a Flash accelerator to obtain maximum efficiency. It provides 64 KB of embedded Flash memory for code/data storage and 8 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as Hardware Divider DIV, ADC, I2C, USART, UART, SPI, MCTM, GPTM, PWM, BFTM, CRC-16/32, RTC, WDT, SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The device also contains a multi-channel 24-bit Delta Sigma A/D converter which includes a programmable gain amplifier and is designed for applications that interface differentially to analog signals. The above Features ensure that the device is suitable for use in a wide range of applications, especially in areas such as white goods application controllers, power monitors, alarm systems, consumer products, handheld equipment, data logging applications, motor controllers and so on. Rev. 1.00 6 of 59 January 17, 2020 2 Features Enhanced 24-bit A/D Arm® Cortex®-M0+ MCU HT32F59041 2 Features Core ▆ 32-bit Arm® Cortex®-M0+ processor core ▆ Up to 20 MHz operating frequency ▆...
