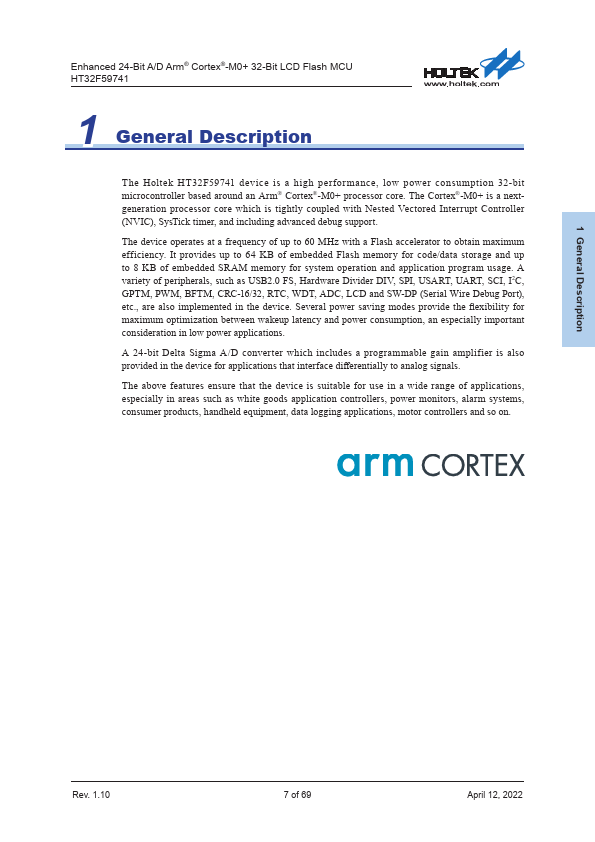

GENERAL DESCRIPTION
Enhanced 24-Bit A/D Arm® Cortex®-M0+ 32-Bit LCD Flash MCU HT32F59741 1 GENERAL DESCRIPTION
The device operates at a frequency of up to 60 MHz with a Flash accelerator to obtain maximum efficiency. It provides up to 64 KB of embedded Flash memory for code/data storage and up to 8 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as USB2.0 FS, Hardware Divider DIV, SPI, USART, UART, SCI, I2C, GPTM, PWM, BFTM, CRC-16/32, RTC, WDT, ADC, LCD and SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. A 24-bit Delta Sigma A/D converter which includes a programmable gain amplifier is also provided in the device for applications that interface differentially to analog signals. The above features ensure that the de...
