HT32F61049 Datasheet | Holtek Semiconductor

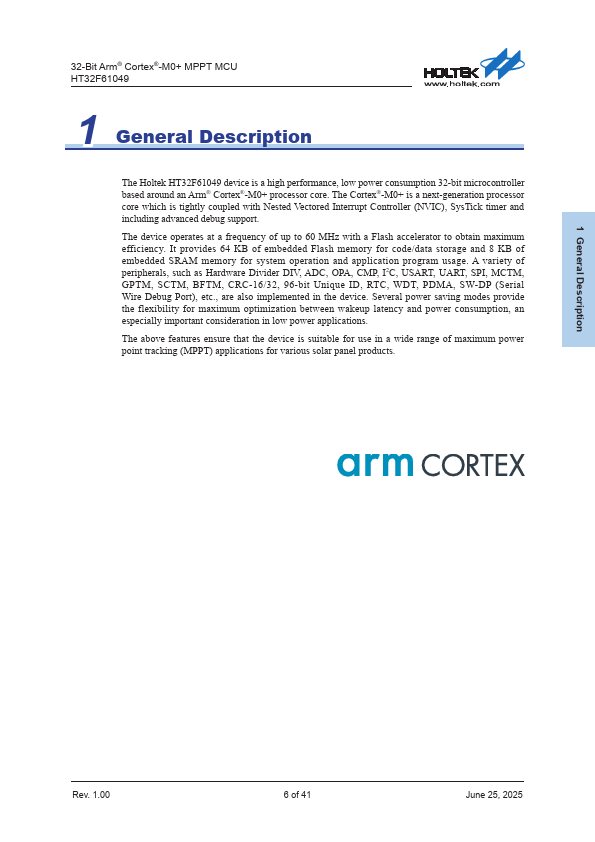

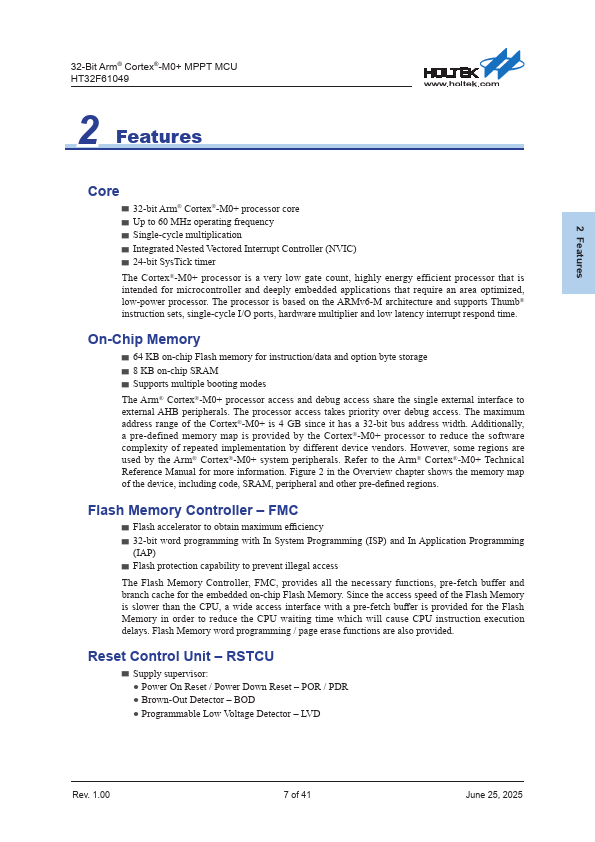

Description The Holtek HT32F61049 device is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a next-generation processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer and including advanced debug support. The device operates at a frequency of up to 60 MHz with a Flash accelerator to obtain maximum efficiency. It provides 64 KB of embedded Flash memory for code/data storage and 8 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as Hardware Divider DIV, ADC, OPA, CMP, I2C, USART, UART, SPI, MCTM, GPTM, SCTM, BFTM, CRC-16/32, 96-bit Unique ID, RTC, WDT, PDMA, SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The above features ensure that the device is suitable for use in a wide range of maximum power point tracking (MPPT) applications for various solar panel products. 1 General Description Rev. 1.00 6 of 41 June 25, 2025 2 Features 32-Bit Arm® Cortex®-M0+ MPPT MCU HT32F61049 2 Features Core ▆ 32-bit Arm® Cortex®-M0+ processor core ▆ Up to 60 MHz operating frequency ▆ Single-cycle multiplication ▆ Integrated Nested Vectored Interrupt Controller (NVIC) ▆ 24-bit Sys Tick timer The Cortex®-M0+ processor is a very low gate count, highly energy efficient processor that is intended for microcontroller and deeply embedded applications that require an area optimized, low-power processor. The processor is based on the ARMv6-M architecture and supports Thumb® instruction sets, single-cycle I/O ports, hardware multiplier and low latency interrupt respond time. On-Chip Memory ▆ 64 KB on-chip Flash memory for instruction/data and option byte storage ▆ 8 KB on-chip SRAM ▆ Supports...
