HT32F61245
Description

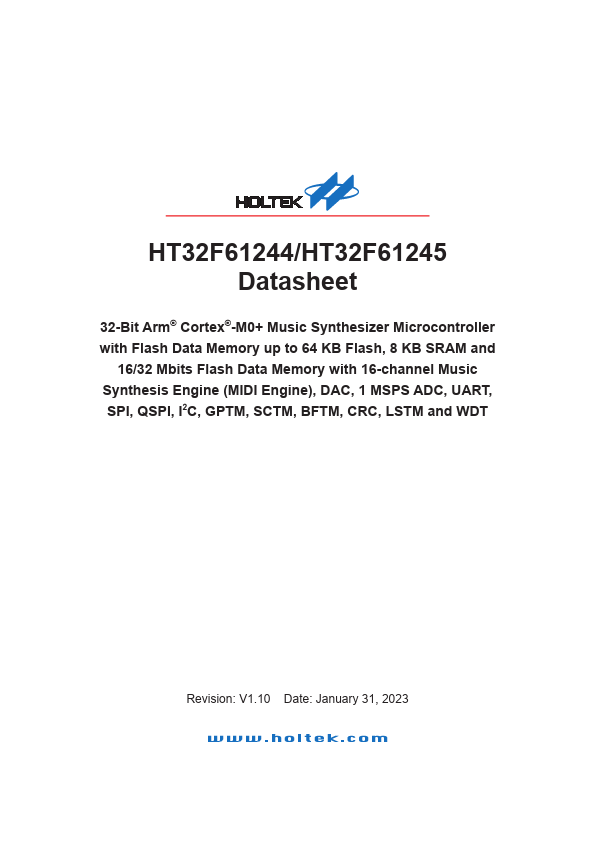

32-Bit Arm® Cortex®-M0+ Music Synthesizer MCU with Flash Data Memory HT32F61244/HT32F61245

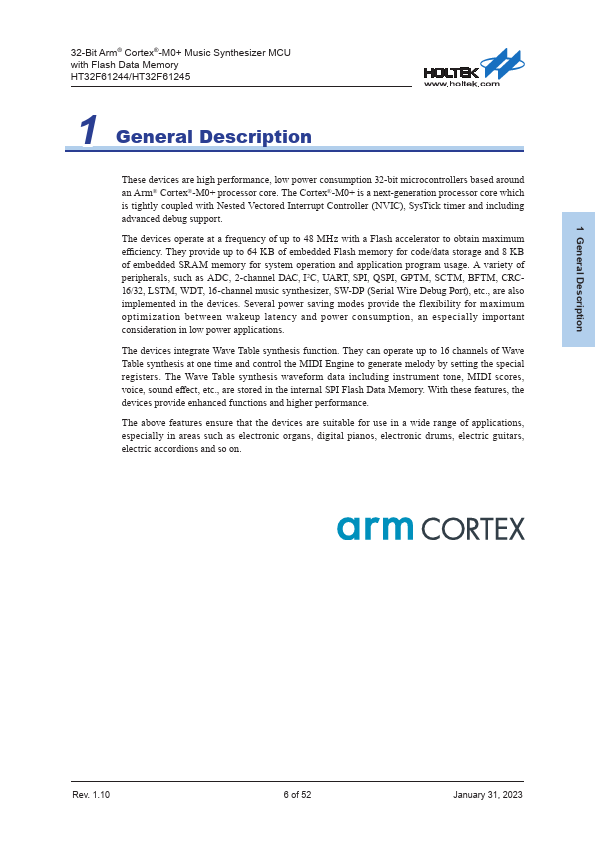

1 General Description
These devices are high performance, low power consumption 32-bit microcontrollers based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a next-generation processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer and including advanced debug support.
The devices operate at a frequency of up to 48 MHz with a Flash accelerator to obtain maximum efficiency. They provide up to 64 KB of embedded Flash memory for code/data storage and 8 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as ADC, 2-channel DAC, I2C, UART, SPI, QSPI, GPTM, SCTM, BFTM, CRC16/32, LSTM, WDT, 16-channel music synthesizer, SW-DP (Serial Wire Debug Port), etc., are also implemented in the devices. Several power saving modes provide the flexibility for maximum optimization...
