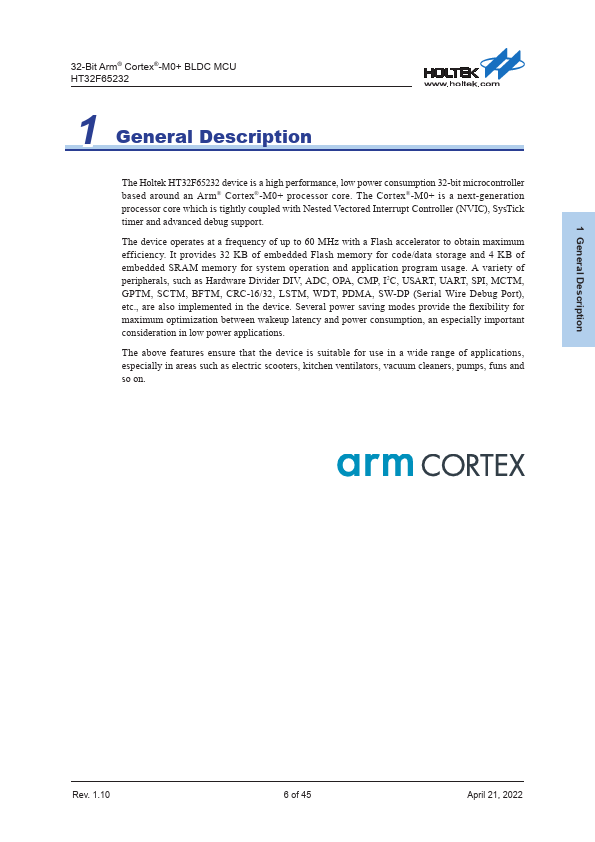

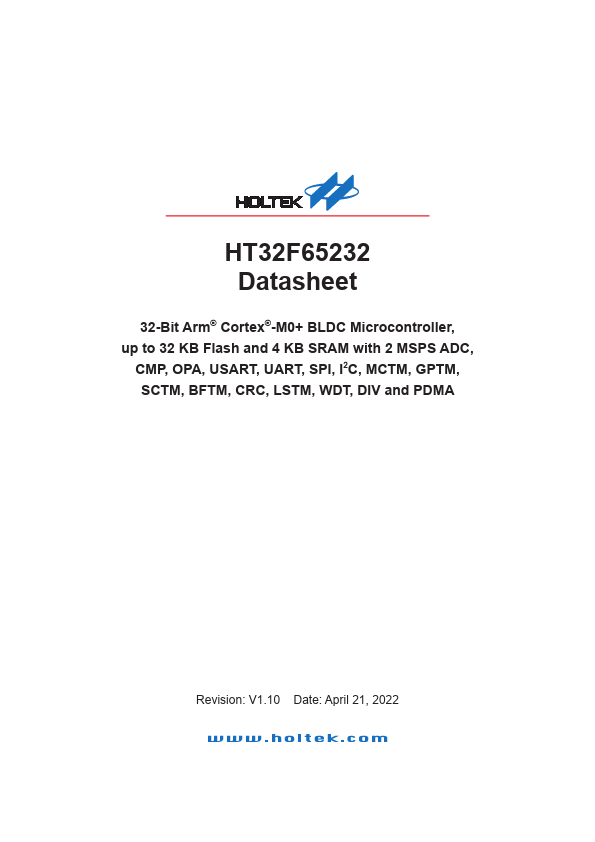

HT32F65232 Datasheet 32-Bit Arm® Cortex®-M0+ BLDC Microcontroller, up to 32 KB Flash and 4 KB SRAM with 2 MSPS ADC, CMP, OPA, USART, UART, SPI, I2C, MCTM, GPTM, SCTM, BFTM, CRC, LSTM, WDT, DIV and PDMA Revision: V1.10 Date: April 21, 2022 32-Bit Arm® Cortex®-M0+ BLDC MCU HT32F65232 1 General Description The Holtek HT32F65232 device is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a next-generation processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer and advanced debug support. The device operates at a frequency of up to 60 MHz with a Flash accelerator to obtain maximum efficiency. It provides 32 KB of embedded Flash memory for code/data storage and 4 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as Hardware Divider DIV, ADC, OPA, CMP, I2C, USART, UART, SPI, MCTM, GPTM, SCTM, BFTM, CRC-16/32, LSTM, WDT, PDMA, SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The above Features ensure that the device is suitable for use in a wide range of applications, especially in areas such as electric scooters, kitchen ventilators, vacuum cleaners, pumps, funs and so on. 1 General Description Rev. 1.10 6 of 45 April 21, 2022 2 Features 32-Bit Arm® Cortex®-M0+ BLDC MCU HT32F65232 2 Features Core ▆ 32-bit Arm® Cortex®-M0+ processor core ▆ Up to 60 MHz operating frequency ▆ Single-cycle multiplication ▆ Integrated Nested Vectored Interrupt Controller (NVIC) ▆ 24-bit Sys Tick timer The Cortex®-M0+ processor is a very low gate count, highly energy efficient processor that is intended for microcontroller and deeply embedded applications that require an area optimized,...
