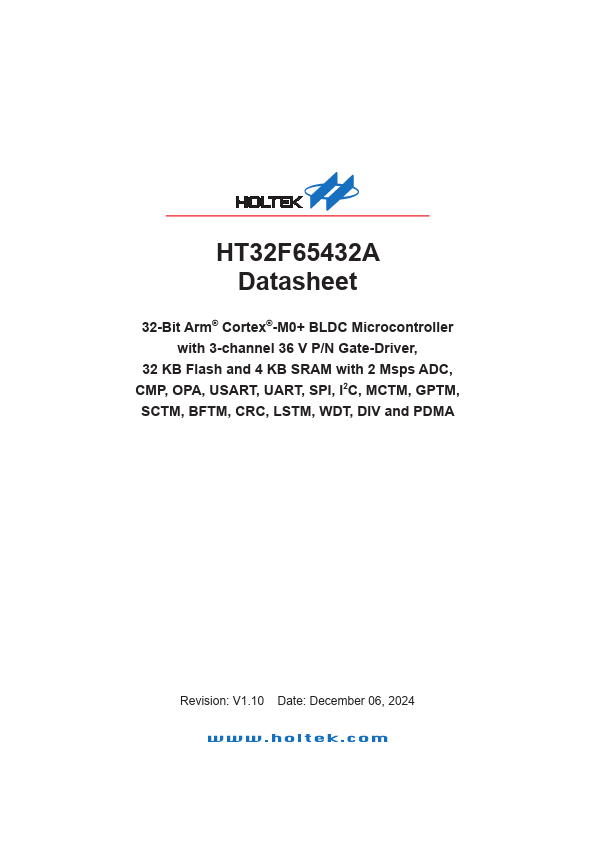

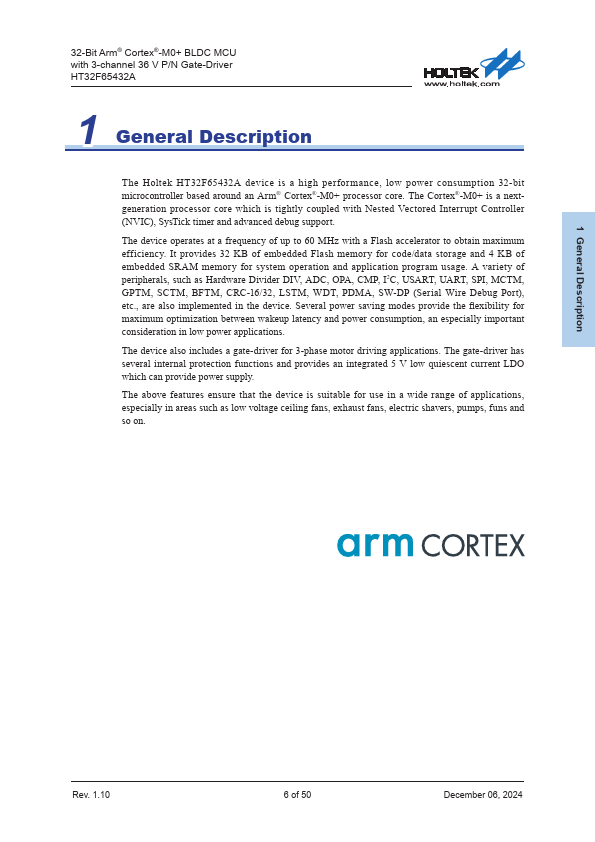

HT32F65432A Datasheet 32-Bit Arm® Cortex®-M0+ BLDC Microcontroller with 3-channel 36 V P/N Gate-Driver, 32 KB Flash and 4 KB SRAM with 2 Msps ADC, CMP, OPA, USART, UART, SPI, I2C, MCTM, GPTM, SCTM, BFTM, CRC, LSTM, WDT, DIV and PDMA Revision: V1.10 Date: December 06, 2024 1 General Description 32-Bit Arm® Cortex®-M0+ BLDC MCU with 3-channel 36 V P/N Gate-Driver HT32F65432A 1 General Description The Holtek HT32F65432A device is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a nextgeneration processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer and advanced debug support. The device operates at a frequency of up to 60 MHz with a Flash accelerator to obtain maximum efficiency. It provides 32 KB of embedded Flash memory for code/data storage and 4 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as Hardware Divider DIV, ADC, OPA, CMP, I2C, USART, UART, SPI, MCTM, GPTM, SCTM, BFTM, CRC-16/32, LSTM, WDT, PDMA, SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The device also includes a gate-driver for 3-phase motor driving applications. The gate-driver has several internal protection functions and provides an integrated 5 V low quiescent current LDO which can provide power supply. The above Features ensure that the device is suitable for use in a wide range of applications, especially in areas such as low voltage ceiling fans, exhaust fans, electric shavers, pumps, funs and so on. Rev. 1.10 6 of 50 December 06, 2024 2 Features 32-Bit Arm® Cortex®-M0+ BLDC MCU with 3-channel 36 V P/N Gate-Driver HT32F65432A 2 Features Core ▆ 32-bit Arm® Cortex®-M0+ processor core...
