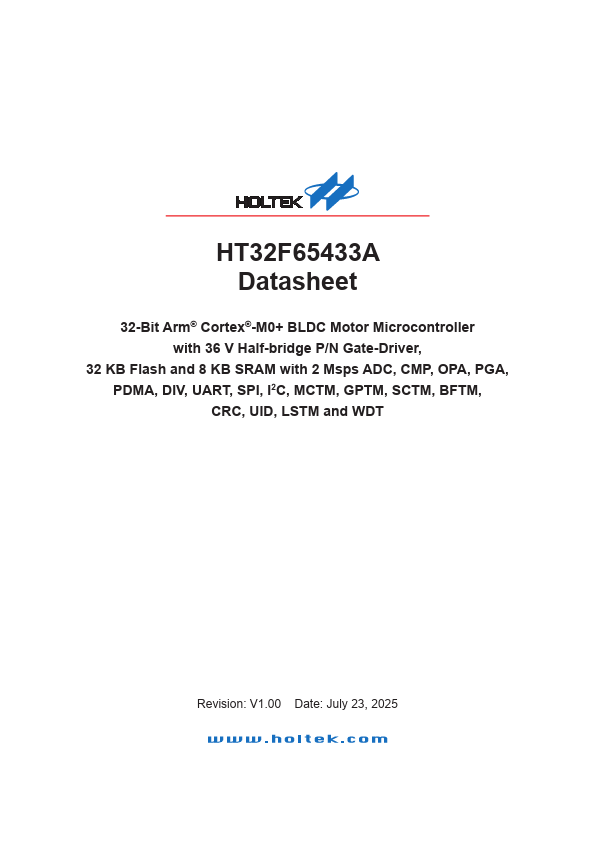

HT32F65433A Datasheet | Holtek Semiconductor

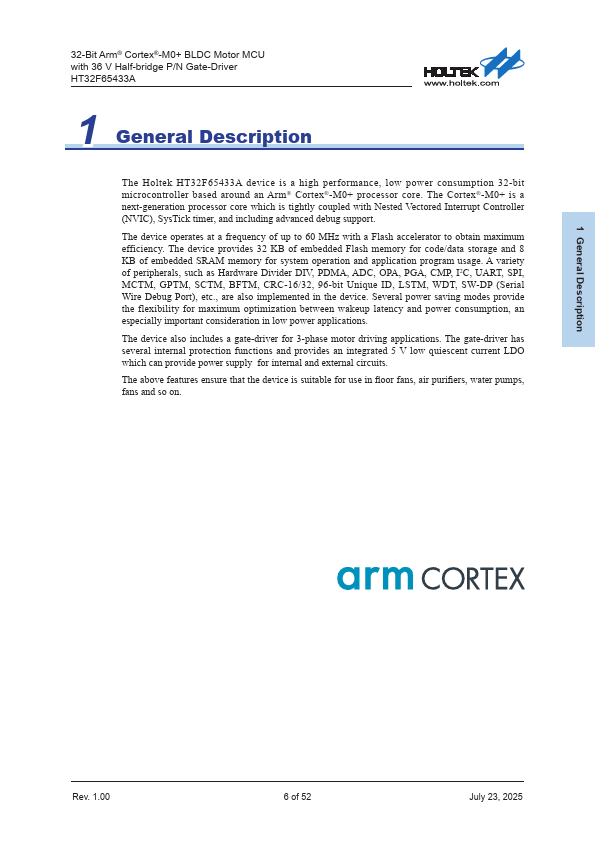

Description The Holtek HT32F65433A device is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M0+ processor core. The Cortex®-M0+ is a next-generation processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), Sys Tick timer, and including advanced debug support. The device operates at a frequency of up to 60 MHz with a Flash accelerator to obtain maximum efficiency. The device provides 32 KB of embedded Flash memory for code/data storage and 8 KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as Hardware Divider DIV, PDMA, ADC, OPA, PGA, CMP, I2C, UART, SPI, MCTM, GPTM, SCTM, BFTM, CRC-16/32, 96-bit Unique ID, LSTM, WDT, SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The device also includes a gate-driver for 3-phase motor driving applications. The gate-driver has several internal protection functions and provides an integrated 5 V low quiescent current LDO which can provide power supply for internal and external circuits. The above features ensure that the device is suitable for use in floor fans, air purifiers, water pumps, fans and so on. 1 General Description Rev. 1.00 6 of 52 July 23, 2025 2 Features 32-Bit Arm® Cortex®-M0+ BLDC Motor MCU with 36 V Half-bridge P/N Gate-Driver HT32F65433A 2 Features Core ▆ 32-bit Arm® Cortex®-M0+ processor core ▆ Up to 60 MHz operating frequency ▆ Single-cycle multiplication ▆ Integrated Nested Vectored Interrupt Controller (NVIC) ▆ 24-bit Sys Tick timer The Cortex®-M0+ processor is a very low gate count, highly energy efficient processor that is intended for microcontroller and deeply embedded applications that require an area optimized, low-power processor. The processor is...
