Holtek Semiconductor HT32F67595

The Holtek HT32F67595 device is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M33 processor core and with an Arm® Cortex®-M0+ co-processor core which runs the lower layer of the BLE and 2.4G protocol stack. The Cortex®-M33 is a next-generation processor core which is tightly coupled with Nested Vectored Interrupt Controller (NVIC), SysTick timer, and including advanced debug support.

Part No.	HT32F67595
Datasheet	HT32F67595 Download
Manufacturer	Holtek Semiconductor
Description	32-Bit Dual Core BLE Microcontroller
Buy	Stock & Price

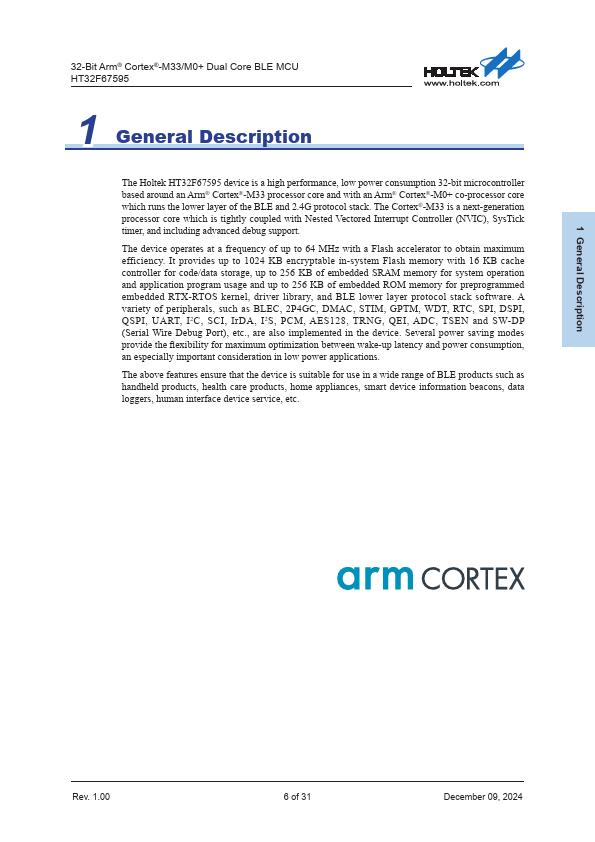

GENERAL DESCRIPTION

32-Bit Arm® Cortex®-M33/M0+ Dual Core BLE MCU HT32F67595 1

GENERAL DESCRIPTION

The device operates at a frequency of up to 64 MHz with a Flash accelerator to obtain maximum efficiency. It provides up to 1024 KB encryptable in-system Flash memory with 16 KB cache controller for code/data storage, up to 256 KB of embedded SRAM memory for system operation and application program usage and up to 256 KB of embedded ROM memory for preprogrammed embedded RTX-RTOS kernel, driver library, and BLE lower layer protocol stack software. A variety of peripherals, such as BLEC, 2P4GC, DMAC, STIM, GPTM, WDT, RTC, SPI, DSPI, QSPI, UART, I2C, SCI, IrDA, I2S, PCM, AES128, TRNG, QEI, ADC, TSEN and SW-DP (Serial Wire Debug Port), etc., are also implemented in the device. Several power saving modes provide the flexibility for maximum optimization between wake-up latency and power consumption, an especially important consideration in low power applications. The above features ensure that...
