HT45F0006

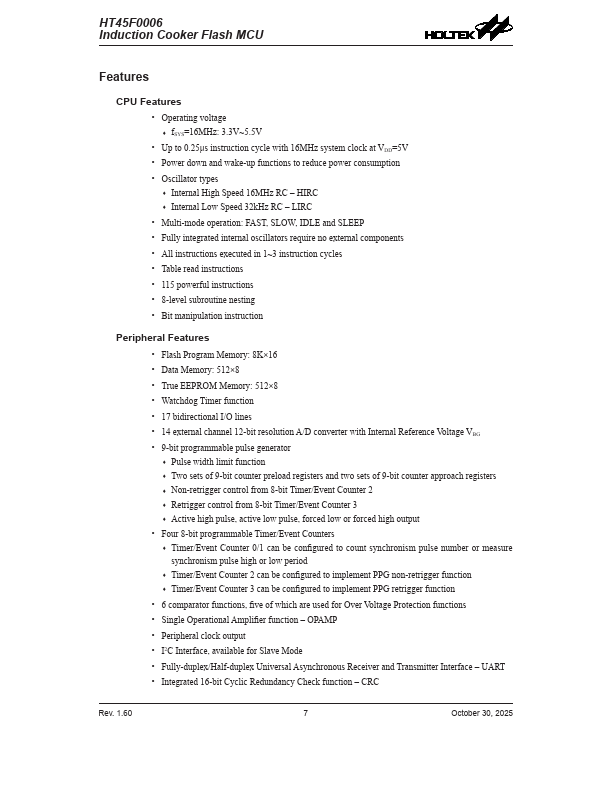

Features
CPU Features
- Operating voltage
- f SYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 16MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 8K×16
- Data Memory: 512×8
- True EEPROM Memory: 512×8
- Watchdog Timer function
- 17 bidirectional I/O lines
- 14 external channel 12-bit resolution A/D converter with Internal Reference Voltage VBG
- 9-bit programmable pulse generator
- Pulse width limit function
- Two sets of 9-bit counter preload registers and two sets of 9-bit counter approach registers
- Non-retrigger...
