Holtek Semiconductor HT45F0036

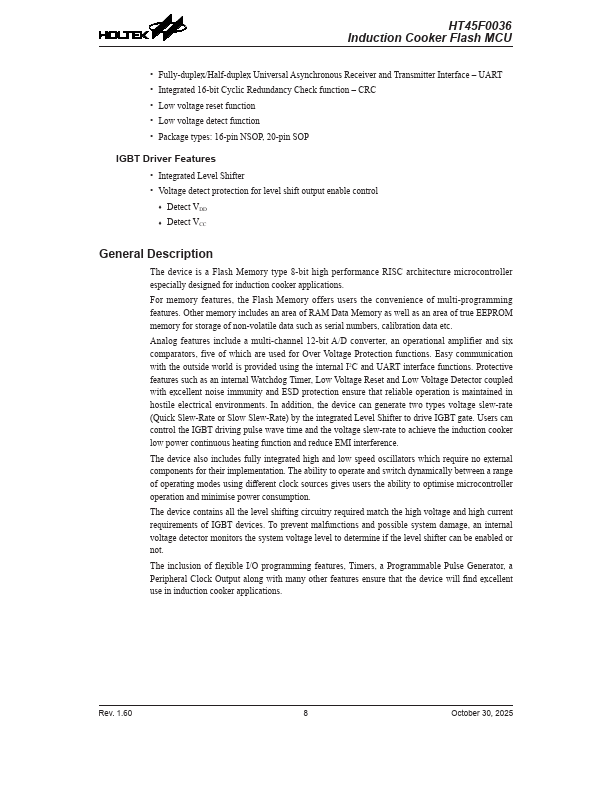

The device is a Flash Memory type 8-bit high performance RISC architecture microcontroller especially designed for induction cooker applications. For memory features, the Flash Memory offers users the convenience of multi-programming features.| Part No. | HT45F0036 |
|---|---|
| Datasheet | HT45F0036 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Induction Cooker Flash MCU |
| Buy | Stock & Price |

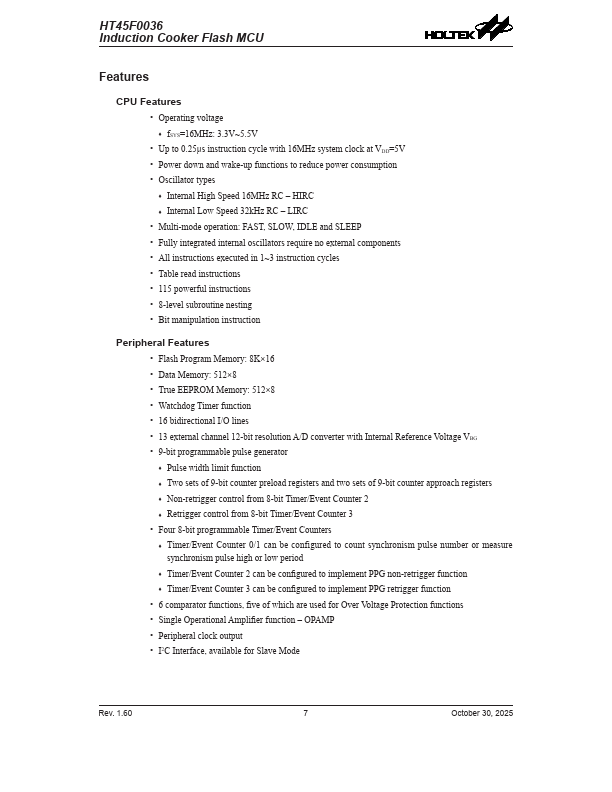

FEATURES
CPUFEATURES
● Operating voltage ♦ fSYS=16MHz: 3.3V~5.5V● Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
● Power down and wake-up functions to reduce power consumption
● Oscillator types ♦ Internal High Speed 16MHz RC – HIRC ♦ Internal Low Speed 32kHz RC – LIRC
● Multi-mode operation: FAST, SLOW, IDLE and SLEEP
● Fully integrated internal oscillators require no external components
● All instructions executed in 1~3 instruction cycles
● Table read instructions
● 115 powerful instructions
● 8-level subroutine nesting
● Bit manipulation instruction Peripheral
FEATURES
● Flash Program Memory: 8K×16● Data Memory: 512×8
● True EEPROM Memory: 512×8
● Watchdog Timer function
● 16 bidirectional I/O lines
● 13 external channel 12-bit resolution A/D converter with Internal Reference Voltage VBG
● 9-bit programmable pulse generator ♦ Pulse width limit function ♦ Two sets of 9-bit counter preload registers and two sets of 9-bit counter approach registers ♦ Non-retrigger...
