Holtek Semiconductor HT45F0058

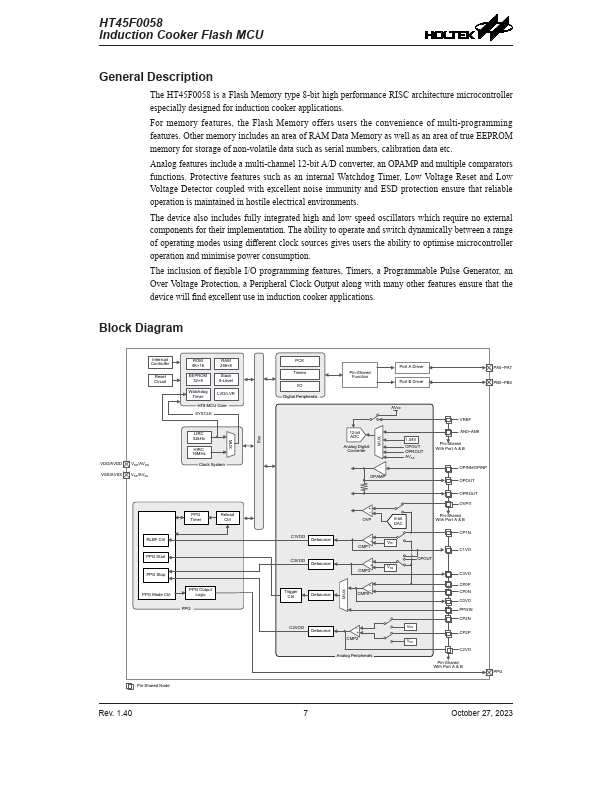

The HT45F0058 is a Flash Memory type 8-bit high performance RISC architecture microcontroller especially designed for induction cooker applications. For memory features, the Flash Memory offers users the convenience of multi-programming features. The OCDSDA and OCDSCK pins are supplied for the OCDS dedicated pins and as such only available for the HT45V0058 device which is the OCDS EV chip for the HT45F0058 device.| Part No. | HT45F0058 |
|---|---|
| Datasheet | HT45F0058 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Induction Cooker Flash MCU |
| Buy | Stock & Price |

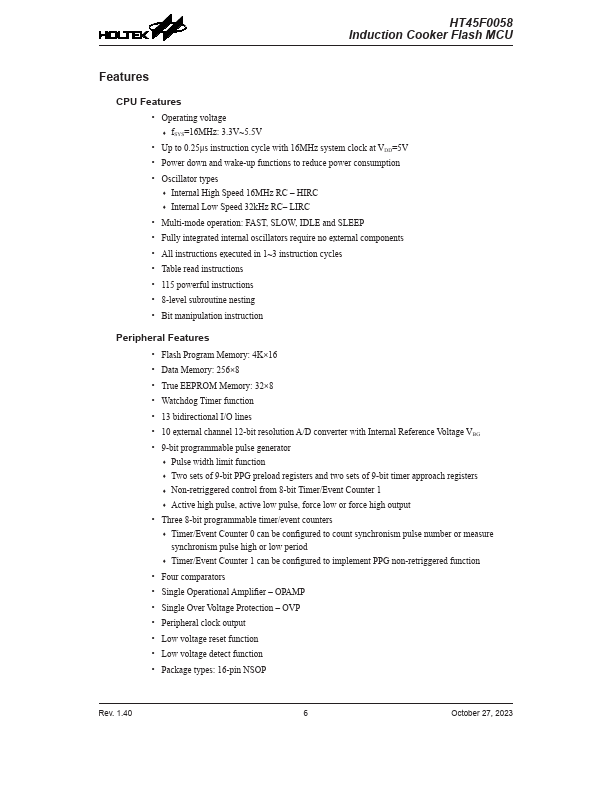

FEATURES
CPUFEATURES
● Operating voltage ♦ fSYS=16MHz: 3.3V~5.5V● Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
● Power down and wake-up functions to reduce power consumption
● Oscillator types ♦ Internal High Speed 16MHz RC – HIRC ♦ Internal Low Speed 32kHz RC– LIRC
● Multi-mode operation: FAST, SLOW, IDLE and SLEEP
● Fully integrated internal oscillators require no external components
● All instructions executed in 1~3 instruction cycles
● Table read instructions
● 115 powerful instructions
● 8-level subroutine nesting
● Bit manipulation instruction Peripheral
FEATURES
● Flash Program Memory: 4K×16● Data Memory: 256×8
● True EEPROM Memory: 32×8
● Watchdog Timer function
● 13 bidirectional I/O lines
● 10 external channel 12-bit resolution A/D converter with Internal Reference Voltage VBG
● 9-bit programmable pulse generator ♦ Pulse width limit function ♦ Two sets of 9-bit PPG preload registers and two sets of 9-bit timer approach registers ♦ Non-retriggered contr...
