Holtek Semiconductor HT45F0063

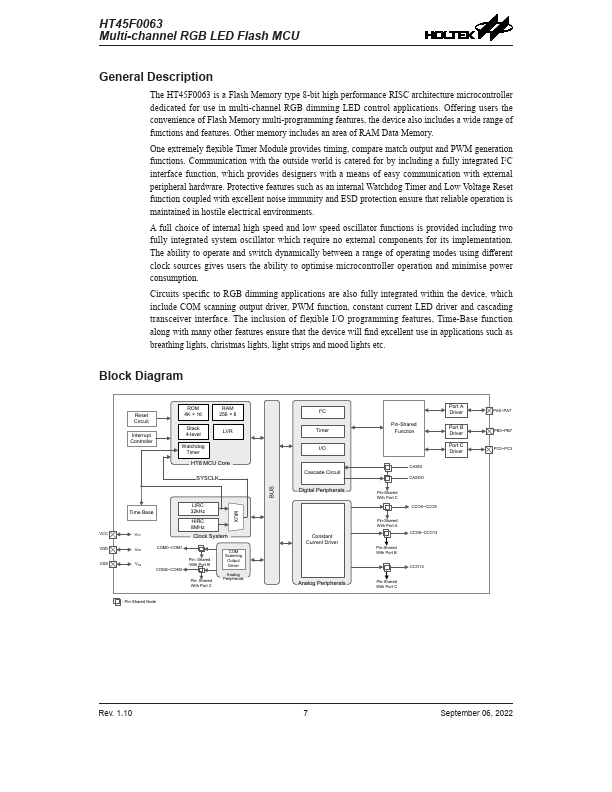

The HT45F0063 is a Flash Memory type 8-bit high performance RISC architecture microcontroller dedicated for use in multi-channel RGB dimming LED control applications.| Part No. | HT45F0063 |
|---|---|
| Datasheet | HT45F0063 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Multi-channel RGB LED Flash MCU |
| Buy | Stock & Price |

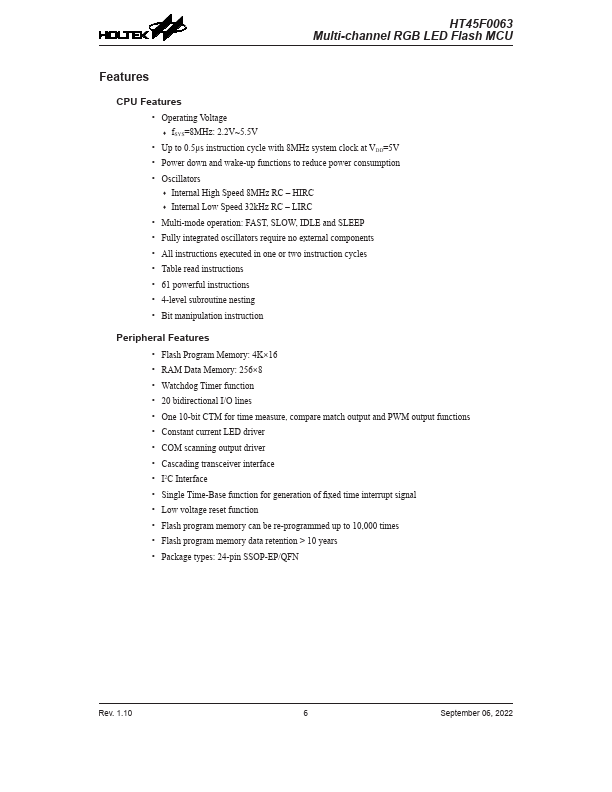

FEATURES
CPUFEATURES
● Operating Voltage ♦ fSYS=8MHz: 2.2V~5.5V● Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
● Power down and wake-up functions to reduce power consumption
● Oscillators ♦ Internal High Speed 8MHz RC – HIRC ♦ Internal Low Speed 32kHz RC – LIRC
● Multi-mode operation: FAST, SLOW, IDLE and SLEEP
● Fully integrated oscillators require no external components
● All instructions executed in one or two instruction cycles
● Table read instructions
● 61 powerful instructions
● 4-level subroutine nesting
● Bit manipulation instruction Peripheral
FEATURES
● Flash Program Memory: 4K×16● RAM Data Memory: 256×8
● Watchdog Timer function
● 20 bidirectional I/O lines
● One 10-bit CTM for time measure, compare match output and PWM output functions
● Constant current LED driver
● COM scanning output driver
● Cascading transceiver interface
● I2C Interface
● Single Time-Base function for generation of fixed time interrupt signal
● Low voltage reset function
● Flash program memory can be re-programmed up to 10,000 times
● Flash program memory data retention > 10 years
● Package types: 24-pin SSOP-EP/QFN Rev.
