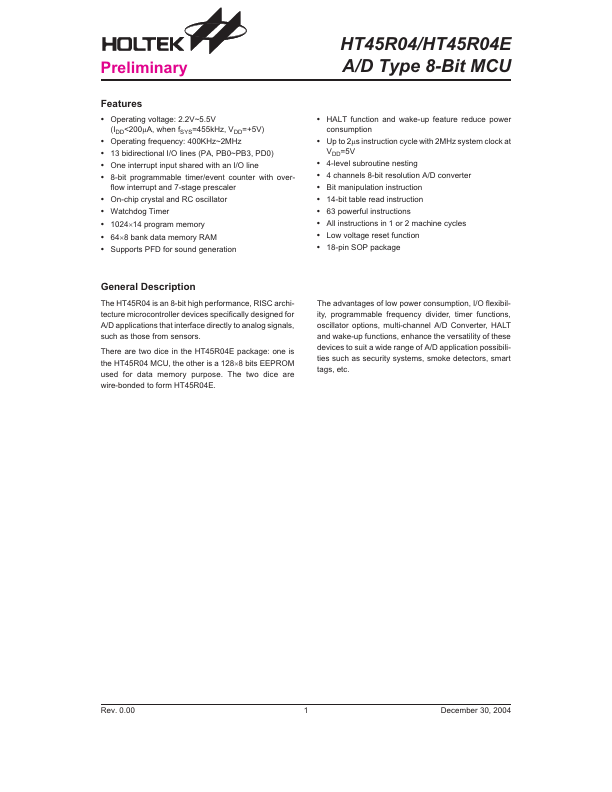

HT45R04 Description
The HT45R04 is an 8-bit high performance, RISC architecture microcontroller devices specifically designed for A/D applications that interface directly to analog signals, such as those from sensors. There are two dice in the HT45R04E package: one is the HT45R04 MCU, the other is a 128´8 bits EEPROM used for data memory purpose.
HT45R04 Key Features
- Operating voltage: 2.2V~5.5V (IDD<200mA, when fSYS=455kHz, VDD=+5V)
- Operating frequency: 400KHz~2MHz
- 13 bidirectional I/O lines (PA, PB0~PB3, PD0)
- One interrupt input shared with an I/O line
- 8-bit programmable timer/event counter with over
- On-chip crystal and RC oscillator
- Watchdog Timer
- 1024´14 program memory
- 64´8 bank data memory RAM
- Supports PFD for sound generation
