Holtek Semiconductor HT45R1005

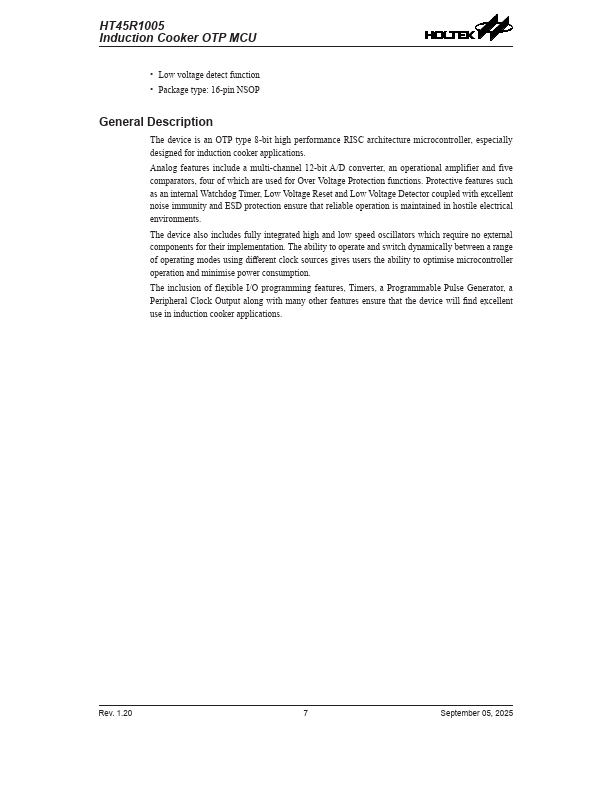

The device is an OTP type 8-bit high performance RISC architecture microcontroller, especially designed for induction cooker applications. The device also includes fully integrated high and low speed oscillators which require no external components for their implementation.| Part No. | HT45R1005 |
|---|---|
| Datasheet | HT45R1005 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Induction Cooker OTP MCU |
| Buy | Stock & Price |

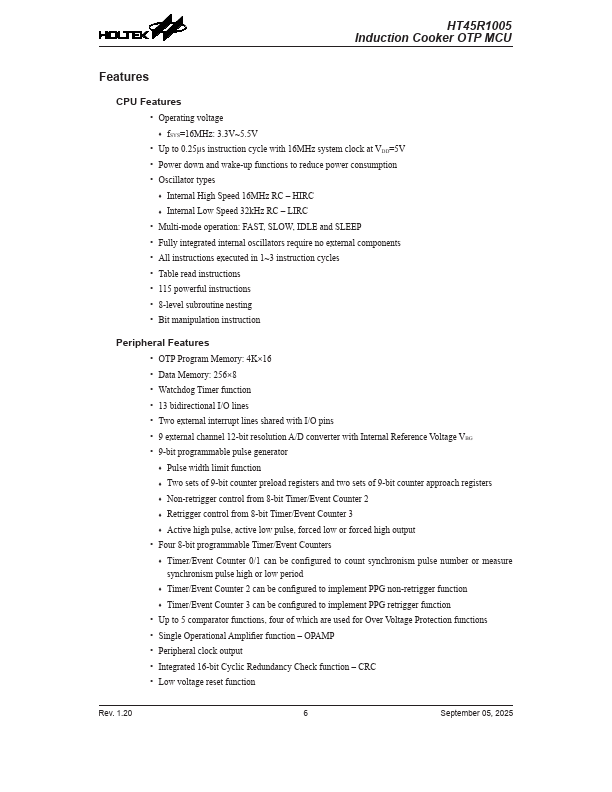

FEATURES
CPUFEATURES
● Operating voltage ♦ fSYS=16MHz: 3.3V~5.5V● Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
● Power down and wake-up functions to reduce power consumption
● Oscillator types ♦ Internal High Speed 16MHz RC – HIRC ♦ Internal Low Speed 32kHz RC – LIRC
● Multi-mode operation: FAST, SLOW, IDLE and SLEEP
● Fully integrated internal oscillators require no external components
● All instructions executed in 1~3 instruction cycles
● Table read instructions
● 115 powerful instructions
● 8-level subroutine nesting
● Bit manipulation instruction Peripheral
FEATURES
● OTP Program Memory: 4K×16● Data Memory: 256×8
● Watchdog Timer function
● 13 bidirectional I/O lines
● Two external interrupt lines shared with I/O pins
● 9 external channel 12-bit resolution A/D converter with Internal Reference Voltage VBG
● 9-bit programmable pulse generator ♦ Pulse width limit function ♦ Two sets of 9-bit counter preload registers and two sets of 9-bit counter approach regi...
