Holtek Semiconductor HT45R7130

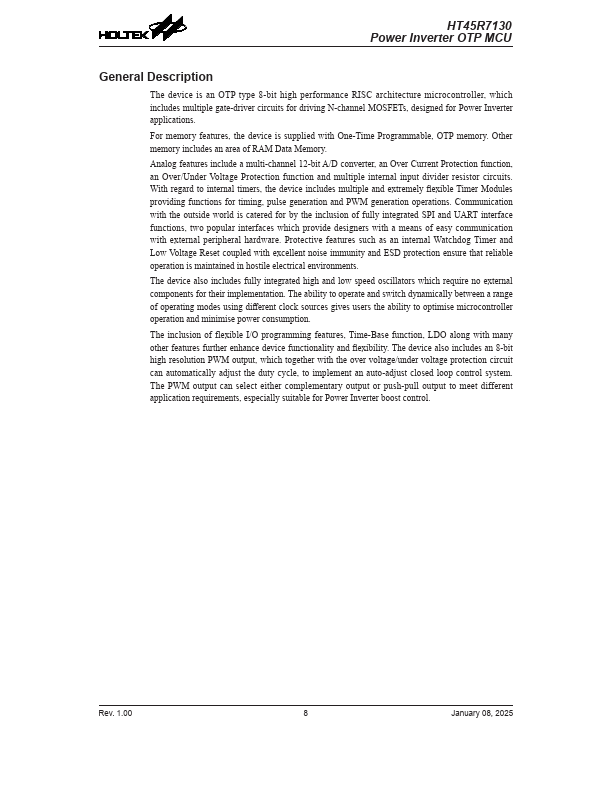

The device is an OTP type 8-bit high performance RISC architecture microcontroller, which includes multiple gate-driver circuits for driving N-channel MOSFETs, designed for Power Inverter applications. For memory features, the device is supplied with One-Time Programmable, OTP memory.| Part No. | HT45R7130 |
|---|---|
| Datasheet | HT45R7130 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Power Inverter OTP MCU |
| Buy | Stock & Price |

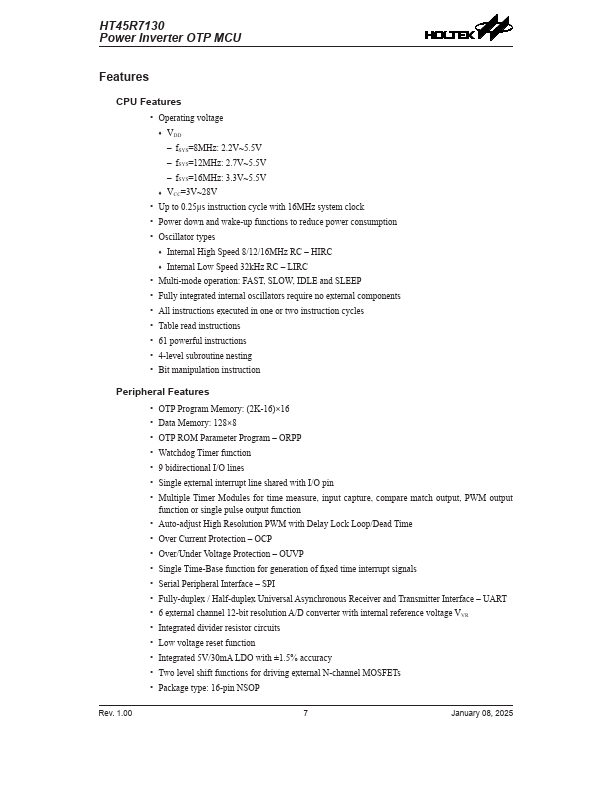

FEATURES
CPUFEATURES
● Operating voltage ♦ VDD – fSYS=8MHz: 2.2V~5.5V – fSYS=12MHz: 2.7V~5.5V – fSYS=16MHz: 3.3V~5.5V ♦ VCC=3V~28V● Up to 0.25μs instruction cycle with 16MHz system clock
● Power down and wake-up functions to reduce power consumption
● Oscillator types ♦ Internal High Speed 8/12/16MHz RC – HIRC ♦ Internal Low Speed 32kHz RC – LIRC
● Multi-mode operation: FAST, SLOW, IDLE and SLEEP
● Fully integrated internal oscillators require no external components
● All instructions executed in one or two instruction cycles
● Table read instructions
● 61 powerful instructions
● 4-level subroutine nesting
● Bit manipulation instruction Peripheral
FEATURES
● OTP Program Memory: (2K-16)×16● Data Memory: 128×8
● OTP ROM Parameter Program – ORPP
● Watchdog Timer function
● 9 bidirectional I/O lines
● Single external interrupt line shared with I/O pin
● Multiple Timer Modules for time measure, input capture, compare match output, PWM output function or single pulse output function
● Aut...
