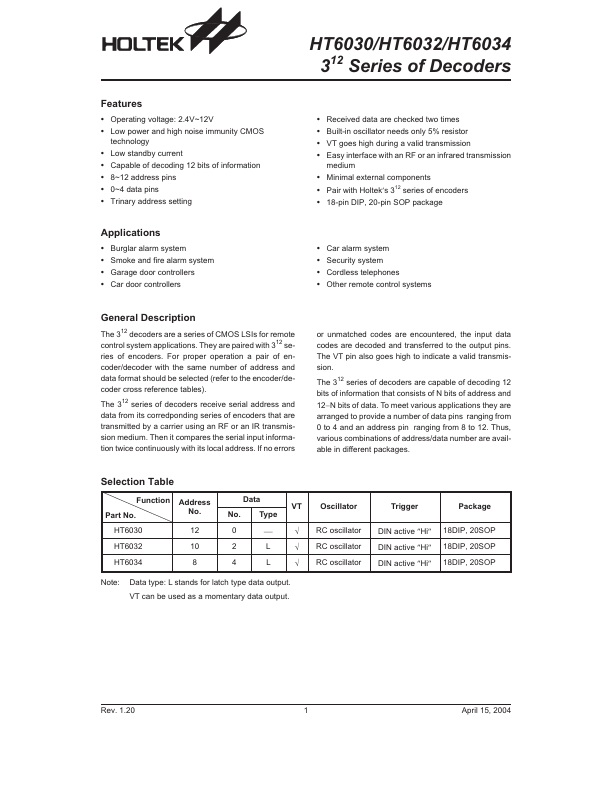

HT6034 Description
The 312 decoders are a series of CMOS LSIs for remote control system applications. They are paired with 312 series of encoders. For proper operation a pair of encoder/decoder with the same number of address and data format should be selected (refer to the encoder/decoder cross reference tables).
HT6034 Key Features
- Operating voltage: 2.4V~12V
- Low power and high noise immunity CMOS
- Low standby current
- Capable of decoding 12 bits of information
- 8~12 address pins
- 0~4 data pins
- Trinary address setting
