HT66F2362
HT66F2362 is A/D Flash MCU manufactured by Holtek Semiconductor.

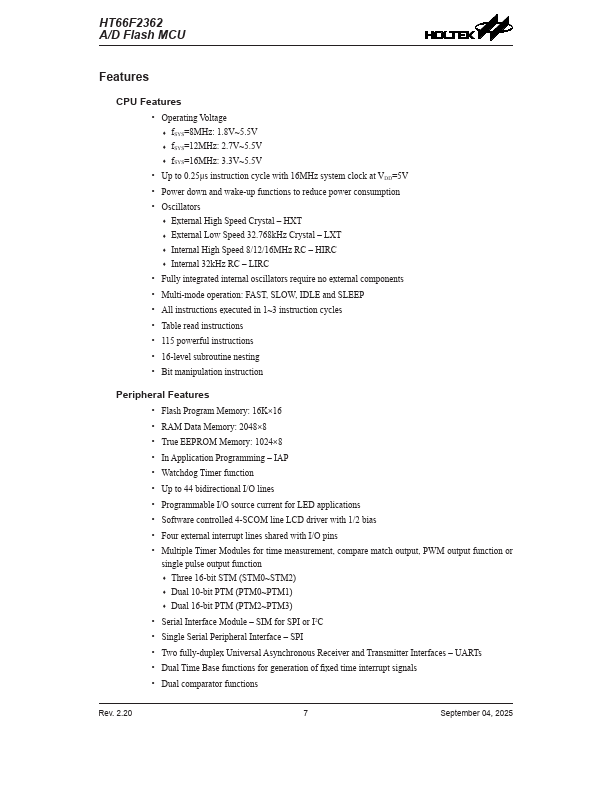

Features
CPU Features
- Operating Voltage
- f SYS=8MHz: 1.8V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- f SYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillators
- External High Speed Crystal
- HXT
- External Low Speed 32.768k Hz Crystal
- LXT
- Internal High Speed 8/12/16MHz RC
- HIRC
- Internal 32k Hz RC
- LIRC
- Fully integrated internal oscillators require no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 16-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 16K×16
- RAM Data Memory: 2048×8
- True EEPROM Memory: 1024×8
- In Application Programming
- IAP
- Watchdog Timer function
- Up to 44 bidirectional I/O lines
- Programmable I/O source current for LED applications
- Software controlled 4-S line LCD driver with 1/2 bias
- Four external interrupt lines shared with I/O pins
- Multiple Timer Modules for time measurement, pare match output, PWM output function or single pulse output function
- Three 16-bit STM (STM0~STM2)
- Dual 10-bit PTM (PTM0~PTM1)
- Dual 16-bit PTM (PTM2~PTM3)
- Serial Interface...
