HT66F3132 Datasheet | Holtek Semiconductor

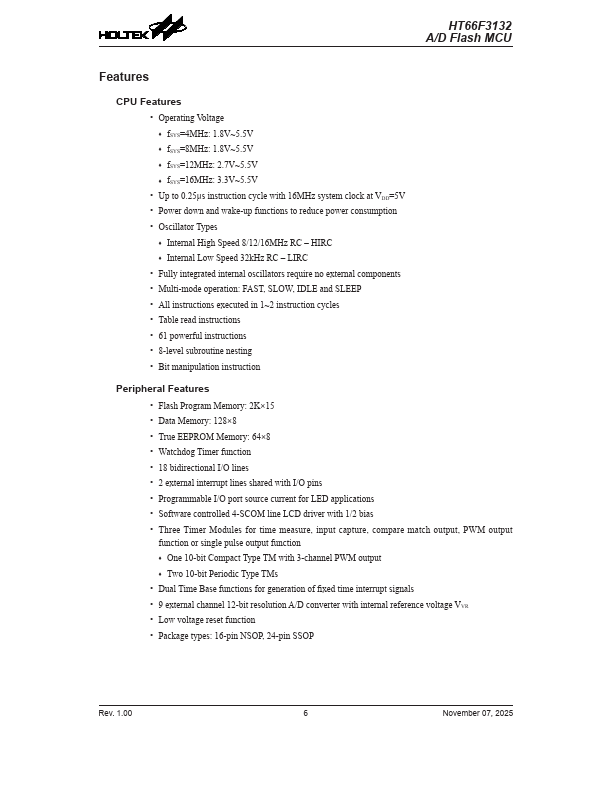

Features CPU Features - Operating Voltage - f SYS=4MHz: 1.8V~5.5V - f SYS=8MHz: 1.8V~5.5V - f SYS=12MHz: 2.7V~5.5V - f SYS=16MHz: 3.3V~5.5V - Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator Types - Internal High Speed 8/12/16MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - Fully integrated internal oscillators require no external ponents - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - All instructions executed in 1~2 instruction cycles - Table read instructions - 61 powerful instructions - 8-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 2K×15 - Data Memory: 128×8 - True EEPROM Memory: 64×8 - Watchdog Timer function - 18 bidirectional I/O lines - 2 external interrupt lines shared with I/O pins - Programmable I/O port source current for LED applications - Software controlled 4-S line LCD driver with 1/2 bias - Three Timer Modules for time measure, input capture, pare match output, PWM output function or single pulse output function - One 10-bit pact Type TM with 3-channel PWM output - Two 10-bit Periodic Type TMs - Dual Time Base functions for generation of fixed time interrupt signals - 9 external channel 12-bit resolution A/D converter with internal reference voltage VVR - Low voltage reset function - Package types: 16-pin NSOP, 24-pin SSOP Rev. 1.00 November 07,...
