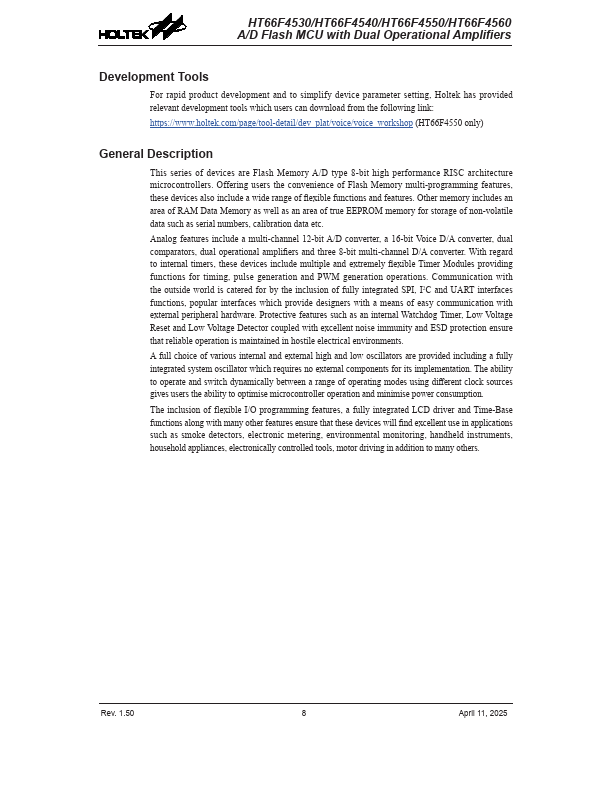

HT66F4560 Description
This series of devices are Flash Memory A/D type 8-bit high performance RISC architecture microcontrollers. Offering users the convenience of Flash Memory multi-programming.

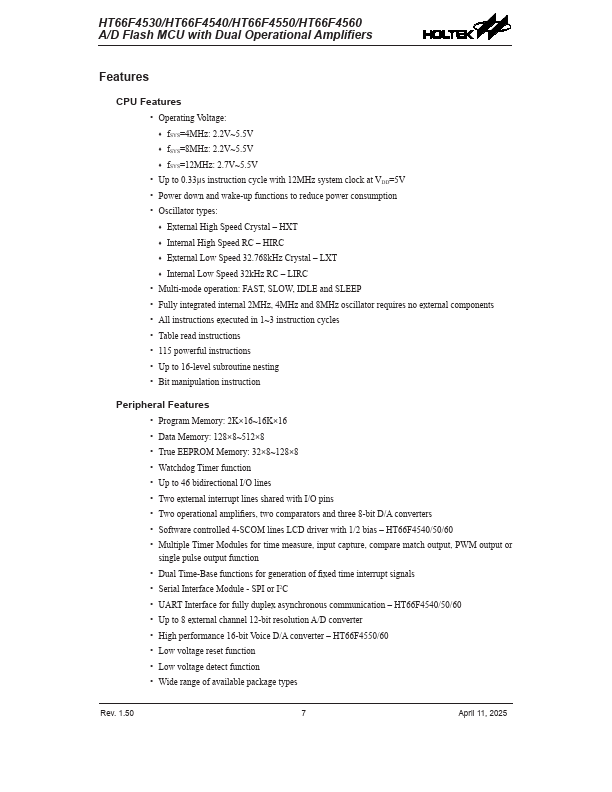

HT66F4560 Key Features
- Operating Voltage
- fSYS=4MHz: 2.2V~5.5V
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- Up to 0.33μs instruction cycle with 12MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- Internal High Speed RC
- External Low Speed 32.768kHz Crystal
