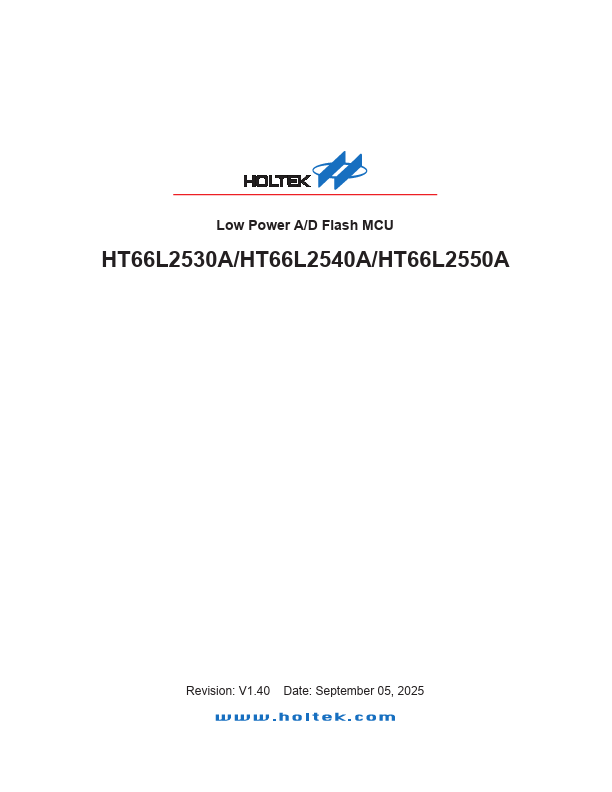

HT66L2530A Description
The series of devices are Flash Memory A/D type 8-bit high performance RISC architecture microcontrollers, designed for applications that interface directly to analog signals.

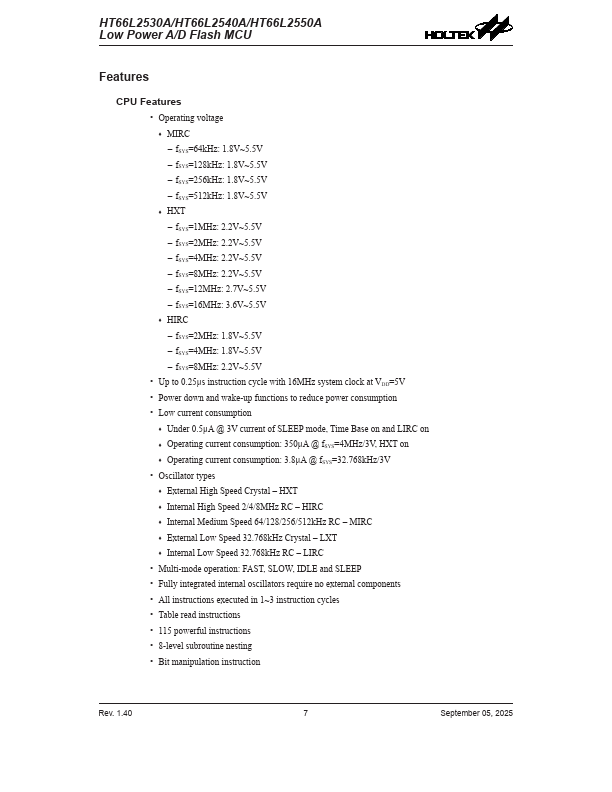

HT66L2530A Key Features
- Operating voltage
- HIRC ̶ fSYS=2MHz: 1.8V~5.5V ̶ fSYS=4MHz: 1.8V~5.5V ̶ fSYS=8MHz: 2.2V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Low current consumption
- Under 0.5μA @ 3V current of SLEEP mode, Time Base on and LIRC on
- Operating current consumption: 350μA @ fSYS=4MHz/3V, HXT on
- Operating current consumption: 3.8μA @ fSYS=32.768kHz/3V
- Oscillator types
- External High Speed Crystal

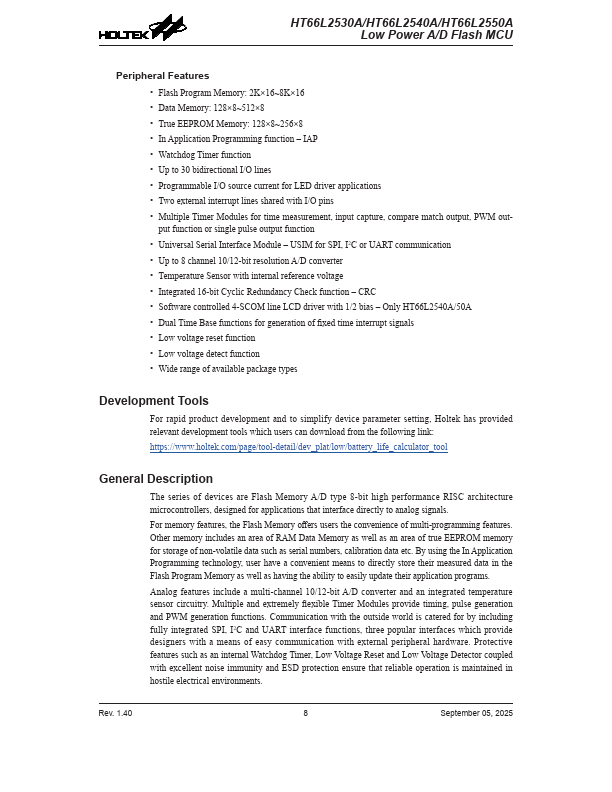

HT66L2530A Applications
- Two external interrupt lines shared with I/O pins
- Multiple Timer Modules for time measurement, input capture, pare match output, PWM output function or single pulse output function
