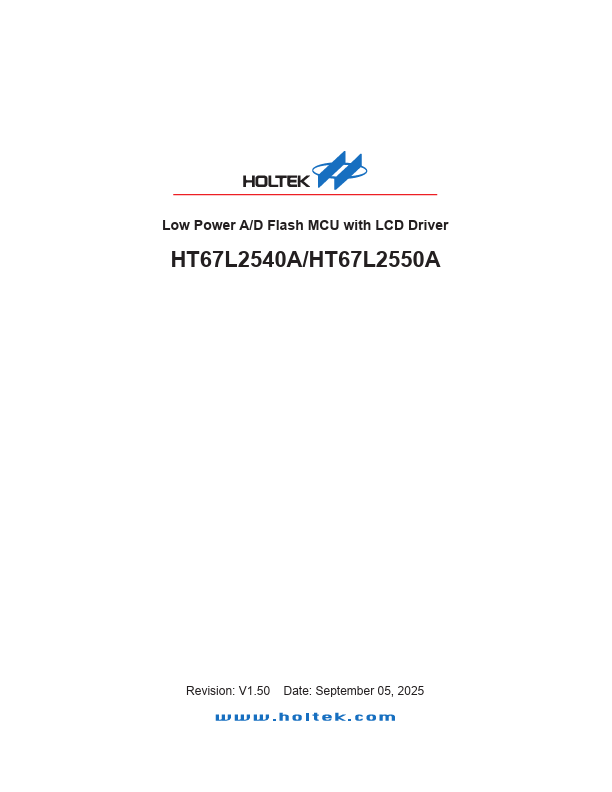

HT67L2540A Datasheet | Holtek Semiconductor

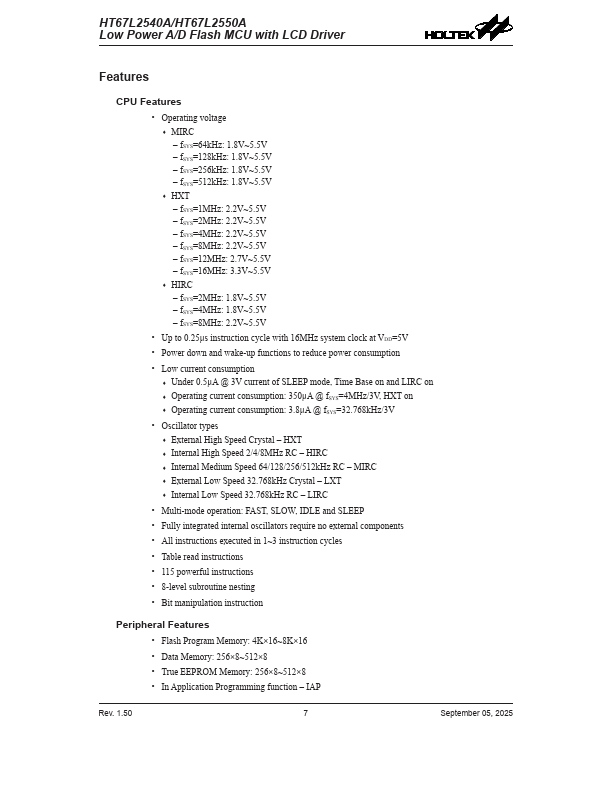

Features CPU Features - Operating voltage - MIRC - f SYS=64k Hz: 1.8V~5.5V - f SYS=128k Hz: 1.8V~5.5V - f SYS=256k Hz: 1.8V~5.5V - f SYS=512k Hz: 1.8V~5.5V - HXT - f SYS=1MHz: 2.2V~5.5V - f SYS=2MHz: 2.2V~5.5V - f SYS=4MHz: 2.2V~5.5V - f SYS=8MHz: 2.2V~5.5V - f SYS=12MHz: 2.7V~5.5V - f SYS=16MHz: 3.3V~5.5V - HIRC - f SYS=2MHz: 1.8V~5.5V - f SYS=4MHz: 1.8V~5.5V - f SYS=8MHz: 2.2V~5.5V - Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Low current consumption - Under 0.5μA @ 3V current of SLEEP mode, Time Base on and LIRC on - Operating current consumption: 350μA @ f SYS=4MHz/3V, HXT on - Operating current consumption: 3.8μA @ f SYS=32.768k Hz/3V - Oscillator types - External High Speed Crystal - HXT - Internal High Speed 2/4/8MHz RC - HIRC - Internal Medium Speed 64/128/256/512k Hz RC - MIRC - External Low Speed 32.768k Hz Crystal - LXT - Internal Low Speed 32.768k Hz RC - LIRC - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - All instructions executed in 1~3 instruction cycles - Table read...
