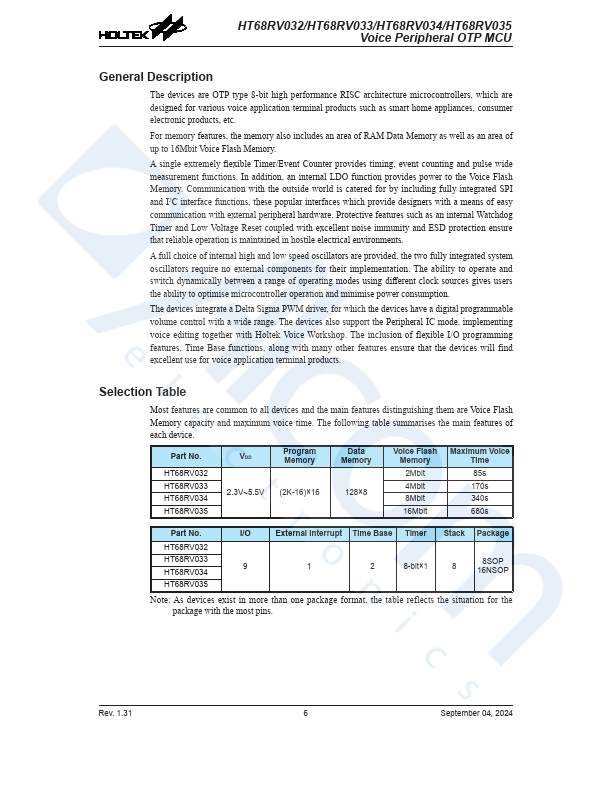

HT68RV034 Description
The devices are OTP type 8-bit high performance RISC architecture microcontrollers, which are designed for various voice application terminal products such as smart home appliances, consumer electronic products, etc.

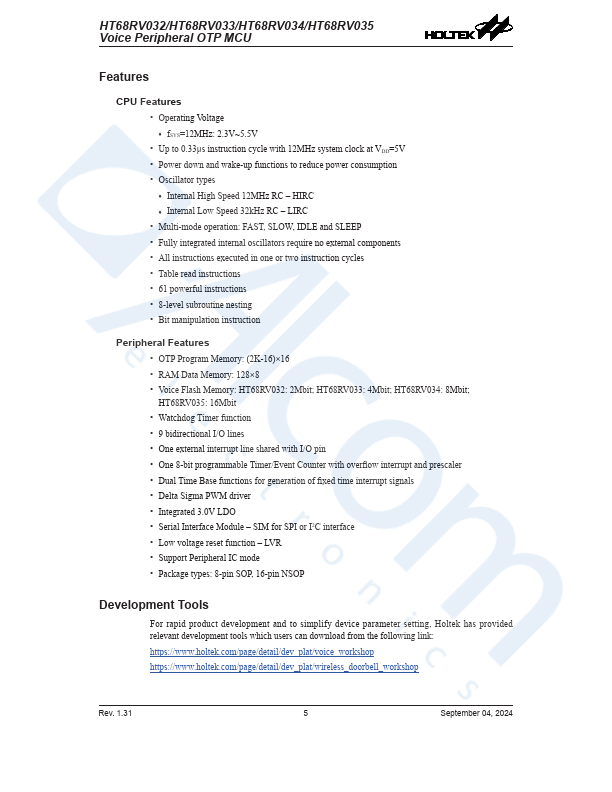

HT68RV034 Key Features
- Operating Voltage
- fSYS=12MHz: 2.3V~5.5V
- Up to 0.33μs instruction cycle with 12MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 12MHz RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in one or two instruction cycles
