Holtek Semiconductor HT69F350

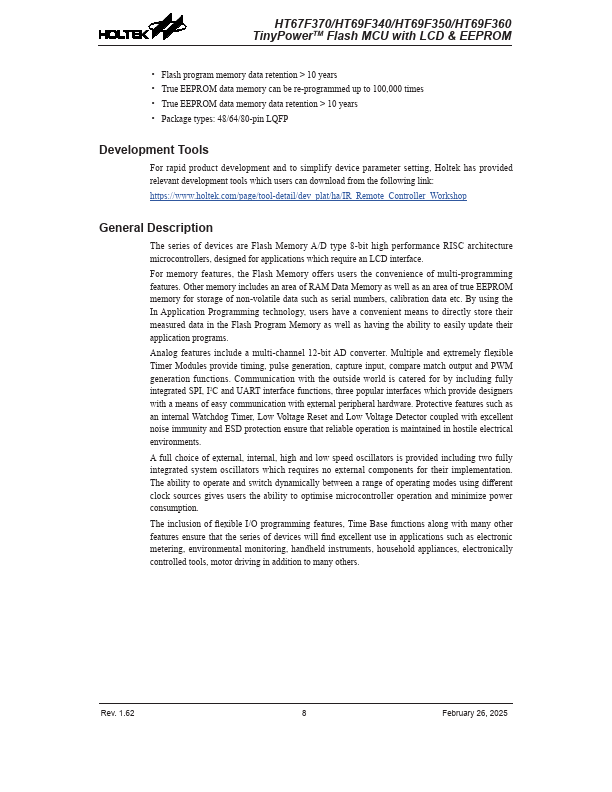

The series of devices are Flash Memory A/D type 8-bit high performance RISC architecture microcontrollers, designed for applications which require an LCD interface. For memory features, the Flash Memory offers users the convenience of multi-programming features.| Part No. | HT69F350 |
|---|---|
| Datasheet | HT69F350 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Flash MCU |
| Buy | Stock & Price |

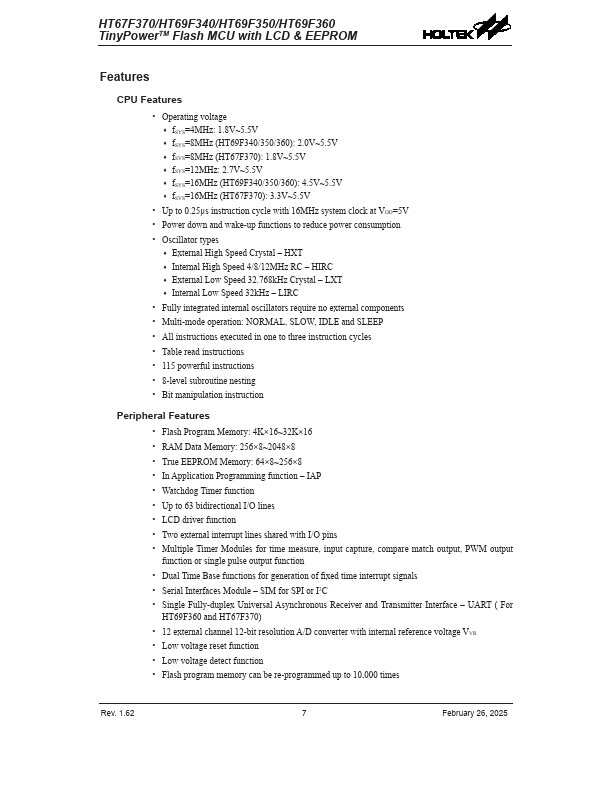

FEATURES
CPUFEATURES
● Operating voltage ♦ fSYS=4MHz: 1.8V~5.5V ♦ fSYS=8MHz (HT69F340/350/360): 2.0V~5.5V ♦ fSYS=8MHz (HT67F370): 1.8V~5.5V ♦ fSYS=12MHz: 2.7V~5.5V ♦ fSYS=16MHz (HT69F340/350/360): 4.5V~5.5V ♦ fSYS=16MHz (HT67F370): 3.3V~5.5V● Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
● Power down and wake-up functions to reduce power consumption
● Oscillator types ♦ External High Speed Crystal – HXT ♦ Internal High Speed 4/8/12MHz RC – HIRC ♦ External Low Speed 32.768kHz Crystal – LXT ♦ Internal Low Speed 32kHz – LIRC
● Fully integrated internal oscillators require no external components
● Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
● All instructions executed in one to three instruction cycles
● Table read instructions
● 115 powerful instructions
● 8-level subroutine nesting
● Bit manipulation instruction Peripheral
FEATURES
● Flash Program Memory: 4K×16~32K×16● RAM Data Memory: 256×8~2048×8
● True EEPROM Memory: 64×8~256×8
● In Application Programming...
