HT7133-2 - 30mA TinyPower LDO

This page provides the datasheet information for the HT7133-2, a member of the HT7121-2 30mA TinyPower LDO family.

Product Overview

Holtek

📥 Download Datasheet

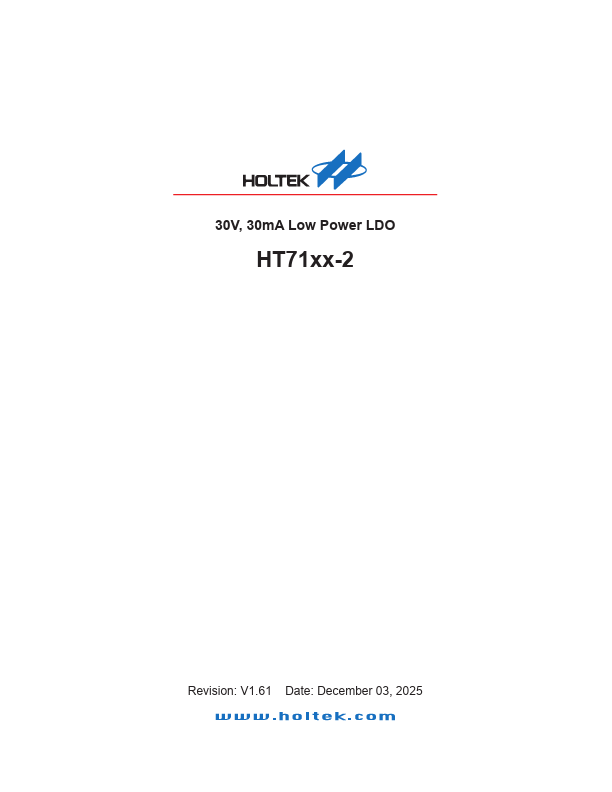

HT7133-2 30mA TinyPower LDO by Holtek - Datasheet Preview — Datasheet preview – HT7133-2

Datasheet Details

Part number	HT7133-2
Manufacturer	Holtek
File Size	369.60 KB
Description	30mA TinyPower LDO
Datasheet	HT7133-2 Datasheet
Additional preview pages of the HT7133-2 datasheet.

HT7133-2 Product details

Description

The HT71xx-2 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology.

They allow input voltages as high as 30V.

They are available with several fixed output voltages ranging from 2.1V to 5.0V.

Features

Low power consumption.
Low voltage drop.
Low temperature coefficient.
High input voltage (up to 30V).
Output voltage accuracy: tolerance ±1%.
Package types: 3-pin TO92, 3-pin SOT89 and 5-pin SOT23.
