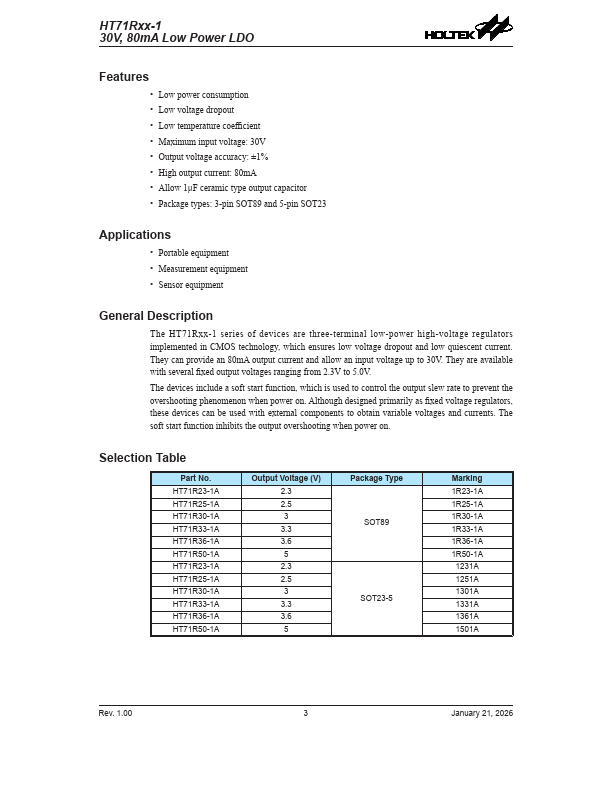

HT71R36-1A Key Features
- Low power consumption
- Low voltage dropout
- Low temperature coefficient
- Maximum input voltage: 30V
- Output voltage accuracy: ±1%
- High output current: 80mA
- Allow 1μF ceramic type output capacitor
- Package types: 3-pin SOT89 and 5-pin SOT23
