HT73L18 Overview
Description
The HT73Lxx are a series of low dropout voltage regulators with an input voltage range from 2.3V to 6.6V. They are available in a range of fixed output voltages from 0.9V to 3.6V.

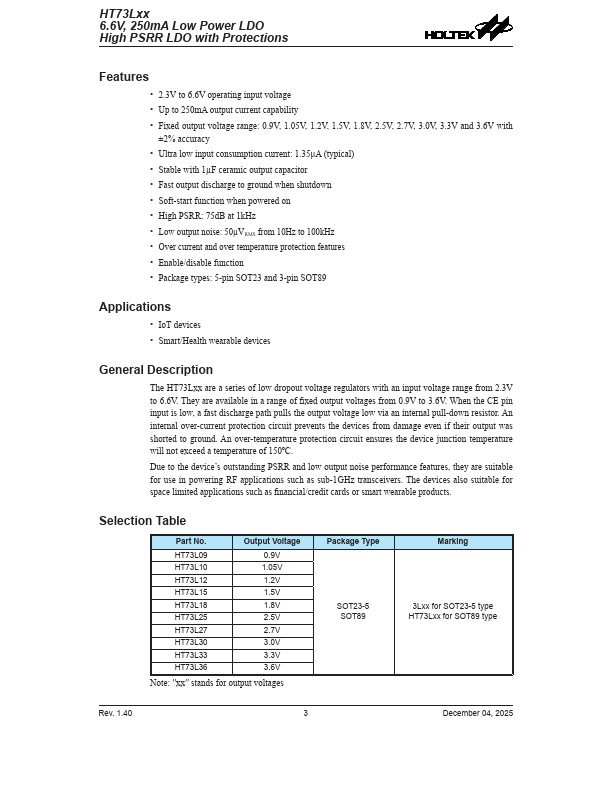

Key Features
- 2.3V to 6.6V operating input voltage
- Up to 250mA output current capability
- Ultra low input consumption current: 1.35μA (typical)
- Stable with 1µF ceramic output capacitor
- Fast output discharge to ground when shutdown
- Soft-start function when powered on
- High PSRR: 75dB at 1kHz
- Low output noise: 50µVRMS from 10Hz to 100kHz
- Over current and over temperature protection features
- Enable/disable function
