Holtek Semiconductor HT73L27
The HT73Lxx are a series of low dropout voltage regulators with an input voltage range from 2.3V to 6.6V. They are available in a range of fixed output voltages from 0.9V to 3.6V. When the CE pin input is low, a fast discharge path pulls the output voltage low via an internal pull-down resistor.| Part No. | HT73L27 |
|---|---|
| Datasheet | HT73L27 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | 250mA Low Power LDO |
| Buy | Stock & Price |

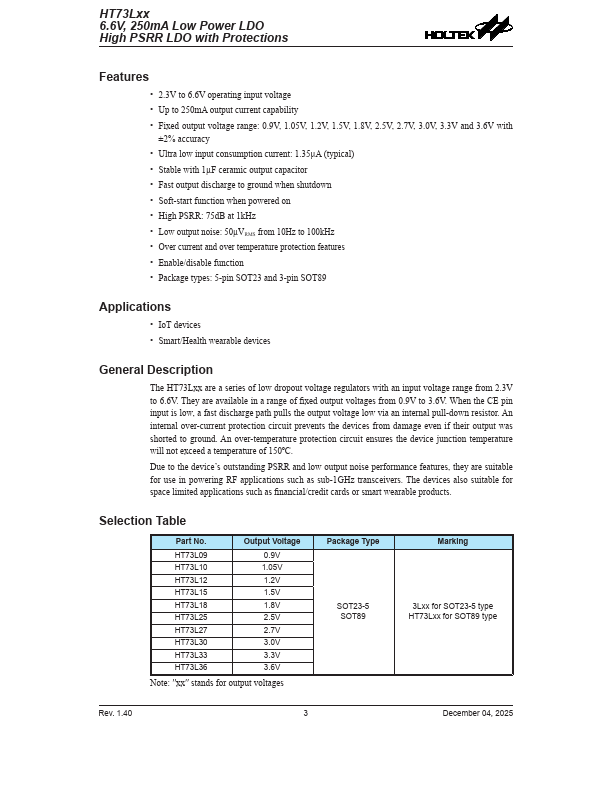

FEATURES
● 2.3V to 6.6V operating input voltage● Up to 250mA output current capability
● Fixed output voltage range: 0.9V, 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 2.7V, 3.0V, 3.3V and 3.6V with ±2% accuracy
● Ultra low input consumption current: 1.35μA (typical)
● Stable with 1µF ceramic output capacitor
● Fast output discharge to ground when shutdown
● Soft-start function when powered on
● High PSRR: 75dB at 1kHz
● Low output noise: 50µVRMS from 10Hz to 100kHz
● Over current and over temperature protection features
● Enable/disable function
● Package types: 5-pin SOT23 and 3-pin SOT89
APPLICATIONS
● IoT devices● Smart/Health wearable devices
GENERAL DESCRIPTION
An internal over-current protection circuit prevents the devices from damage even if their output was shorted to ground. An over-temperature protection circuit ensures the device junction temperature will not exceed a temperature of 150ºC. Due to the device’s outstanding PSRR and low output noise performance features, they are suitable for use in powering RF applications such as sub-1GHz transceivers.
