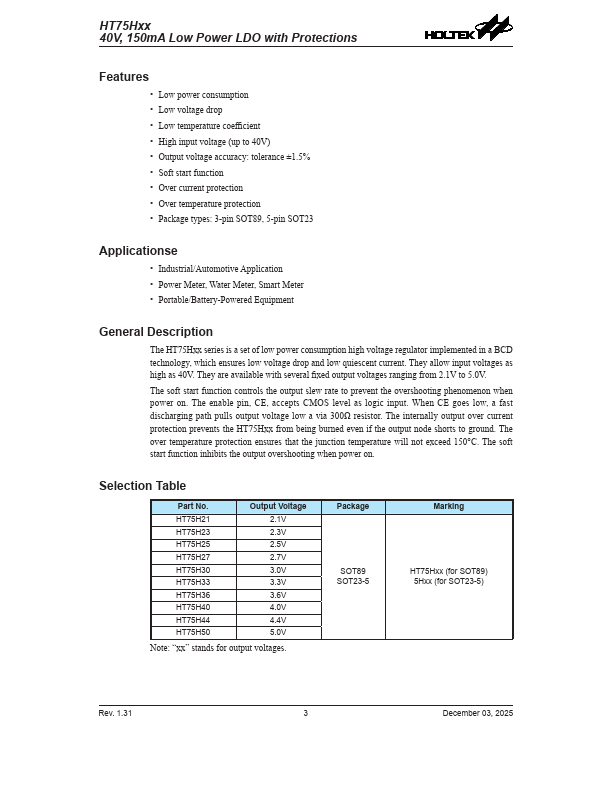

HT75H30 Key Features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 40V)
- Output voltage accuracy: tolerance ±1.5%
- Soft start function
- Over current protection
- Over temperature protection
- Package types: 3-pin SOT89, 5-pin SOT23
Related Holtek Semiconductor Datasheets
| Part Number |
Description |
|
HT75H33
|
40V 150mA Low Power LDO |
|
HT75H36
|
40V 150mA Low Power LDO |
|
HT75H21
|
40V 150mA Low Power LDO |
|
HT75H23
|
40V 150mA Low Power LDO |
|
HT75H25
|
40V 150mA Low Power LDO |
