Holtek Semiconductor HT7727FA
The HT77xxFA series is a set of synchronous step-up DC-DC converters with high efficiency. With a low start-up voltage, the devices are suitable for 1-cell alkaline battery applications. The devices require only three external components to provide a fixed output voltage of 2.7V, 3.0V, 3.3V, 3.7V or 5.0V.| Part No. | HT7727FA |
|---|---|
| Datasheet | HT7727FA Download |
| Manufacturer |  Holtek Semiconductor |
| Description | Low Power 200mA Synchronous Step-up Converter |
| Buy | Stock & Price |

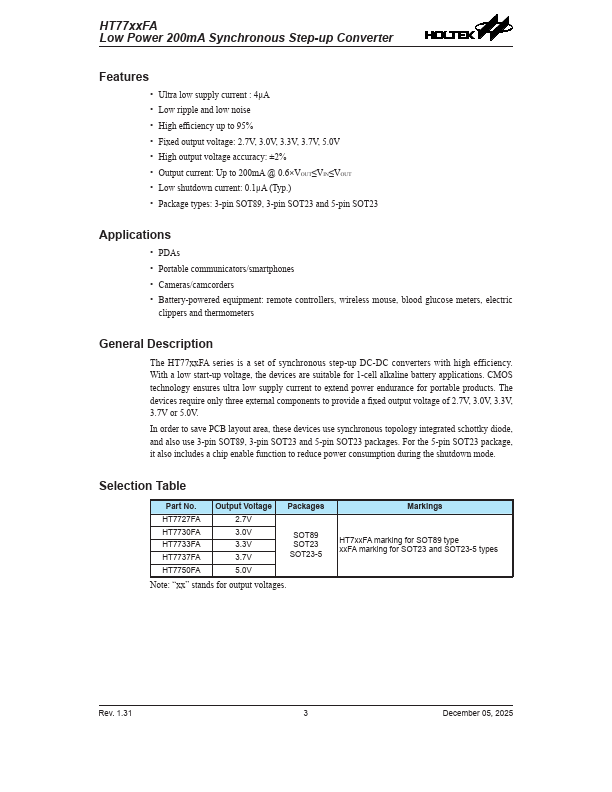

FEATURES
● Ultra low supply current : 4μA● Low ripple and low noise
● High efficiency up to 95%
● Fixed output voltage: 2.7V, 3.0V, 3.3V, 3.7V, 5.0V
● High output voltage accuracy: ±2%
● Output current: Up to 200mA @ 0.6×VOUT≤VIN≤VOUT
● Low shutdown current: 0.1μA (Typ.)
● Package types: 3-pin SOT89, 3-pin SOT23 and 5-pin SOT23
APPLICATIONS
● PDAs● Portable communicators/smartphones
● Cameras/camcorders
● Battery-powered equipment: remote controllers, wireless mouse, blood glucose meters, electric clippers and thermometers
GENERAL DESCRIPTION

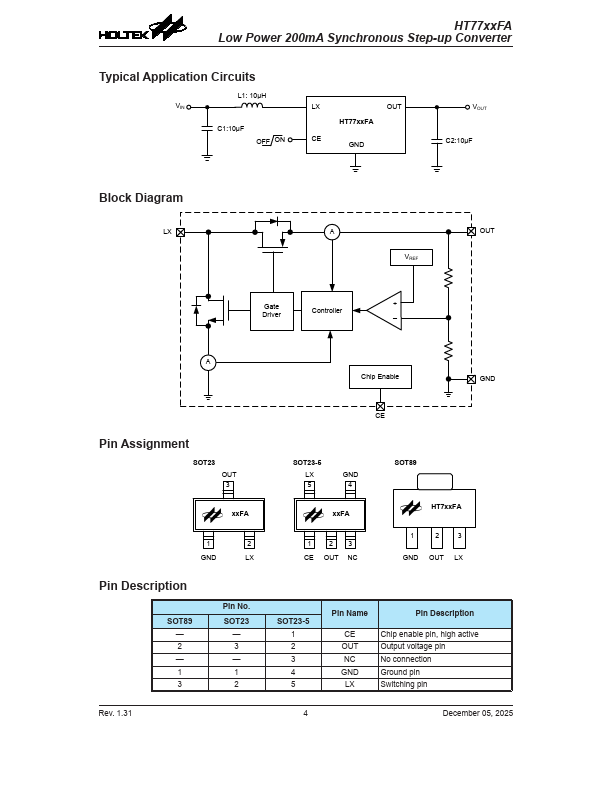

CMOS technology ensures ultra low supply current to extend power endurance for portable products. In order to save PCB layout area, these devices use synchronous topology integrated schottky diode, and also use 3-pin SOT89, 3-pin SOT23 and 5-pin SOT23 packages. For the 5-pin SOT23 package, it also includes a chip enable function to reduce power consumption during the shutdown mode. Selection Table Part No. HT7727FA HT7730FA HT7733FA HT7737FA HT7750FA Output Voltage 2.7V 3.0V 3.3V 3.7V 5.0V Packages SOT89 SOT23 SOT23-5 Note: “xx” stands for output voltages.
