HT7733B
Description

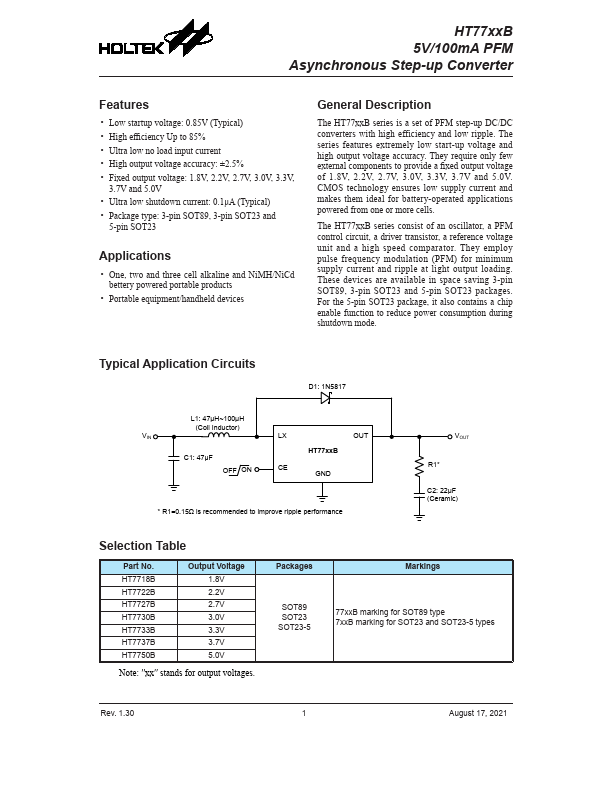

The HT77xxB series is a set of PFM step-up DC/DC converters with high efficiency and low ripple. The series features extremely low start-up voltage and high output voltage accuracy.
Key Features
- Low startup voltage: 0.85V (Typical)
- High efficiency Up to 85%
- Ultra low no load input current
- High output voltage accuracy: ±2.5%
- Ultra low shutdown current: 0.1μA (Typical)
