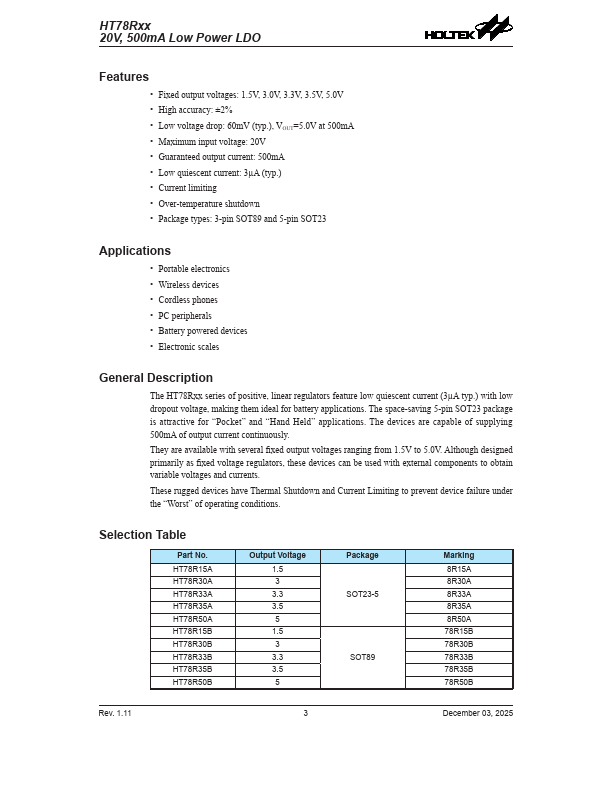

HT78R33A Key Features
- Fixed output voltages: 1.5V, 3.0V, 3.3V, 3.5V, 5.0V
- High accuracy: ±2%
- Low voltage drop: 60mV (typ.), VOUT=5.0V at 500mA
- Maximum input voltage: 20V
- Guaranteed output current: 500mA
- Low quiescent current: 3µA (typ.)
- Current limiting
- Over-temperature shutdown
- Package types: 3-pin SOT89 and 5-pin SOT23
