Holtek Semiconductor HT78R35B
The HT78Rxx series of positive, linear regulators feature low quiescent current (3µA typ.) with low dropout voltage, making them ideal for battery applications. The space-saving 5-pin SOT23 package is attractive for “Pocket” and “Hand Held” applications. The devices are capable of supplying 500mA of output current continuously.| Part No. | HT78R35B |
|---|---|
| Datasheet | HT78R35B Download |
| Manufacturer |  Holtek Semiconductor |
| Description | 20V 500mA Low Power LDO |
| Buy | Stock & Price |

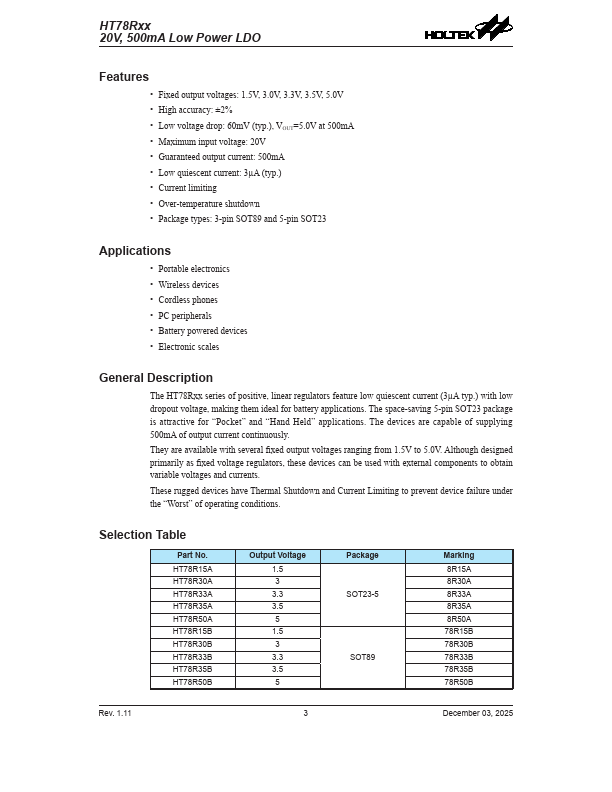

FEATURES
● Fixed output voltages: 1.5V, 3.0V, 3.3V, 3.5V, 5.0V● High accuracy: ±2%
● Low voltage drop: 60mV (typ.), VOUT=5.0V at 500mA
● Maximum input voltage: 20V
● Guaranteed output current: 500mA
● Low quiescent current: 3µA (typ.)
● Current limiting
● Over-temperature shutdown
● Package types: 3-pin SOT89 and 5-pin SOT23
APPLICATIONS
● Portable electronics● Wireless devices
● Cordless phones
● PC peripherals
● Battery powered devices
● Electronic scales
GENERAL DESCRIPTION
They are available with several fixed output voltages ranging from 1.5V to 5.0V. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents. These rugged devices have Thermal Shutdown and Current Limiting to prevent device failure under the “Worst” of operating conditions. Selection Table Part No. HT78R15A HT78R30A HT78R33A HT78R35A HT78R50A HT78R15B HT78R30B HT78R33B HT78R35B HT78R50B Output Voltage 1.5 3 3.3 3.5 5 1.5 3 3.3 3.5 5 Package SOT23-5 SOT89 Marking 8R15A 8R30A 8R33A 8R35A 8R50A 78R15B 78R30B 78R33B 78R35B 78R50B Rev.
