HT7K6970 Datasheet | Holtek Semiconductor

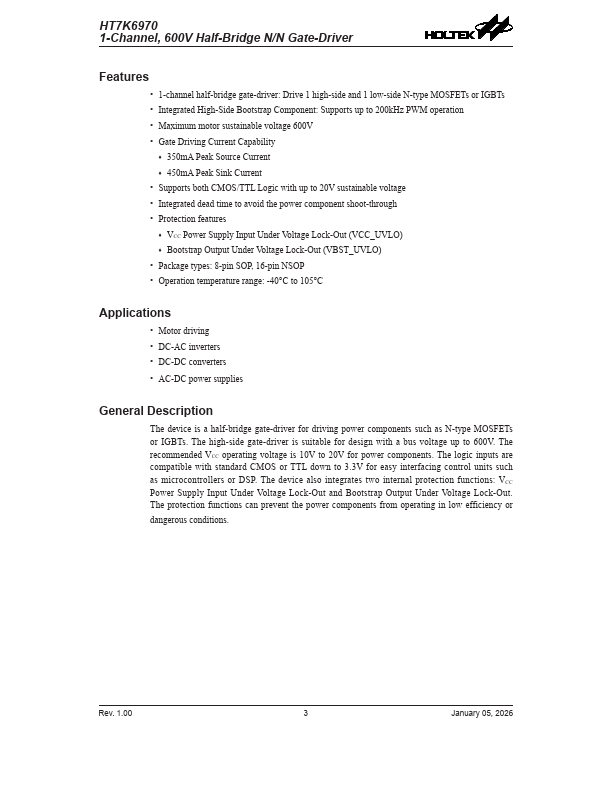

Features - 1-channel half-bridge gate-driver: Drive 1 high-side and 1 low-side N-type MOSFETs or IGBTs - Integrated High-Side Bootstrap ponent: Supports up to 200k Hz PWM operation - Maximum motor sustainable voltage 600V - Gate Driving Current Capability - 350m A Peak Source Current - 450m A Peak Sink Current - Supports both CMOS/TTL Logic with up to 20V sustainable voltage - Integrated dead time to avoid the power ponent shoot-through - Protection features - VCC Power Supply Input Under Voltage Lock-Out (VCC_UVLO) - Bootstrap Output Under Voltage Lock-Out (VBST_UVLO) - Package types: 8-pin SOP, 16-pin NSOP - Operation temperature range: -40°C to 105°C Applications - Motor driving - DC-AC inverters - DC-DC converters - AC-DC power supplies General Description The device is a half-bridge gate-driver for driving power ponents such as N-type MOSFETs or IGBTs. The high-side gate-driver is suitable for design with a bus voltage up to 600V. The remended VCC operating voltage is 10V to 20V for power ponents. The logic inputs are patible with standard CMOS or TTL down to 3.3V for easy interfacing control units such as microcontrollers or DSP. The device also integrates two internal protection functions: VCC Power Supply Input Under Voltage Lock-Out and Bootstrap Output Under Voltage Lock-Out. The protection functions can prevent the power ponents from operating in low efficiency or dangerous conditions. Rev. 1.00 January 05, 2026 HT7K6970 1-Channel, 600V Half-Bridge N/N Gate-Driver Typical Application Circuit 8-pin SOP Package - C2 is optional VCC 10V to 20V C1 10μF/25V C2 0.1μF/25V GND GH SH INH MCU INL CB 1μF/25V - Gate resistor block is...
