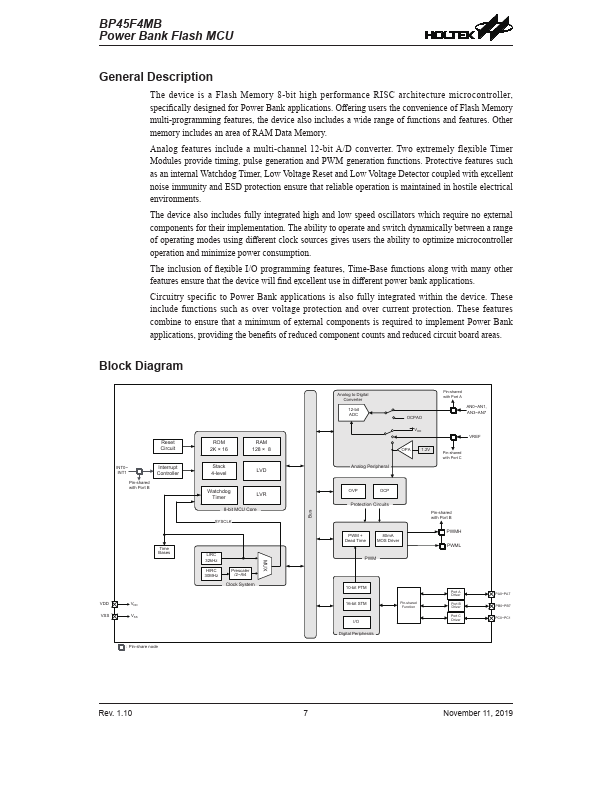

BP45F4MB Description
The device is a Flash Memory 8-bit high performance RISC architecture microcontroller, specifically designed for Power Bank applications. Offering users the convenience of Flash Memory multi-programming.

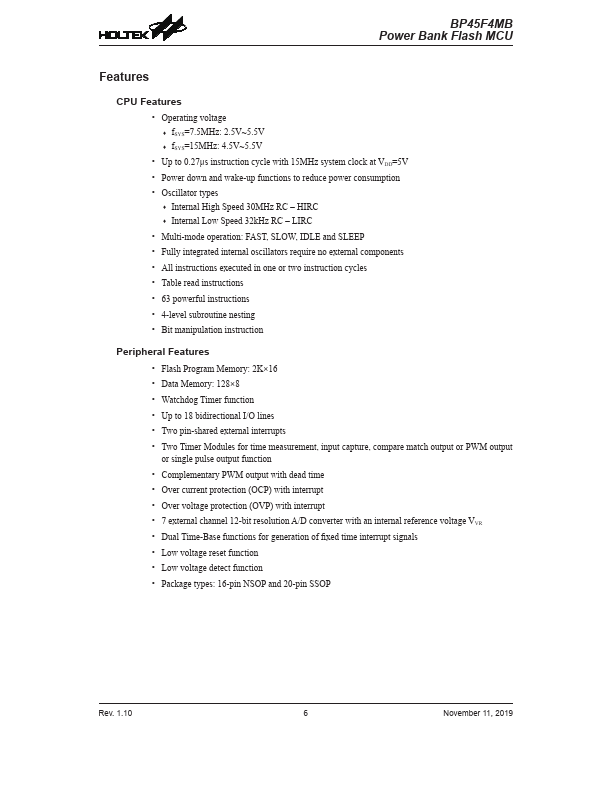

BP45F4MB Key Features
- Operating voltage
- fSYS=7.5MHz: 2.5V~5.5V
- fSYS=15MHz: 4.5V~5.5V
- Up to 0.27μs instruction cycle with 15MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 30MHz RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
