HT46R004 Description
The device is an 8-bit high performance RISC architecture microcontroller device specifically designed for a wide range of applications. The advantages of low power consumption, I/O flexibility, timer functions, HALT and wake-up functions, watchdog timer, as well as low cost, enhance the versatility of the device to suit for a wide range of the I/O and A/D control application possibilities such as industrial...

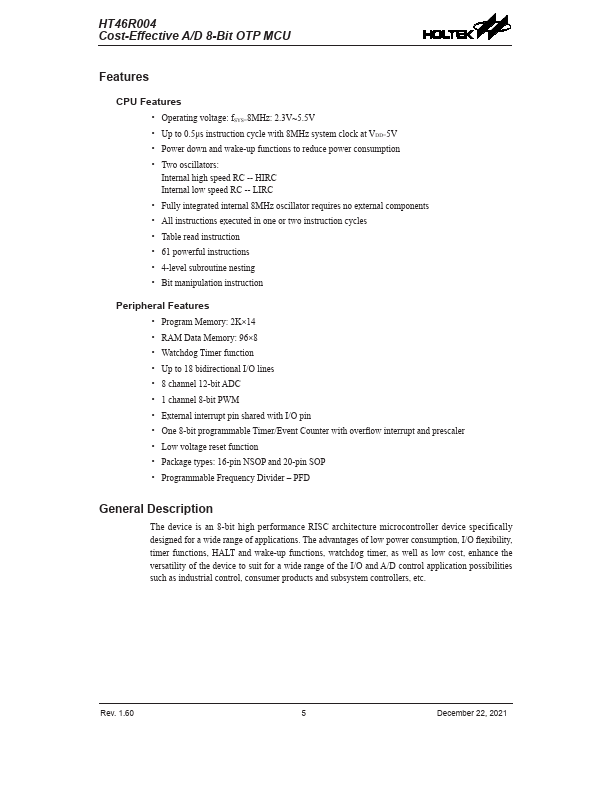

HT46R004 Key Features
- Operating voltage: fSYS=8MHz: 2.3V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Two oscillators: Internal high speed RC -- HIRC Internal low speed RC -- LIRC
- Fully integrated internal 8MHz oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instruction
- 61 powerful instructions
- 4-level subroutine nesting
- Bit manipulation instruction
