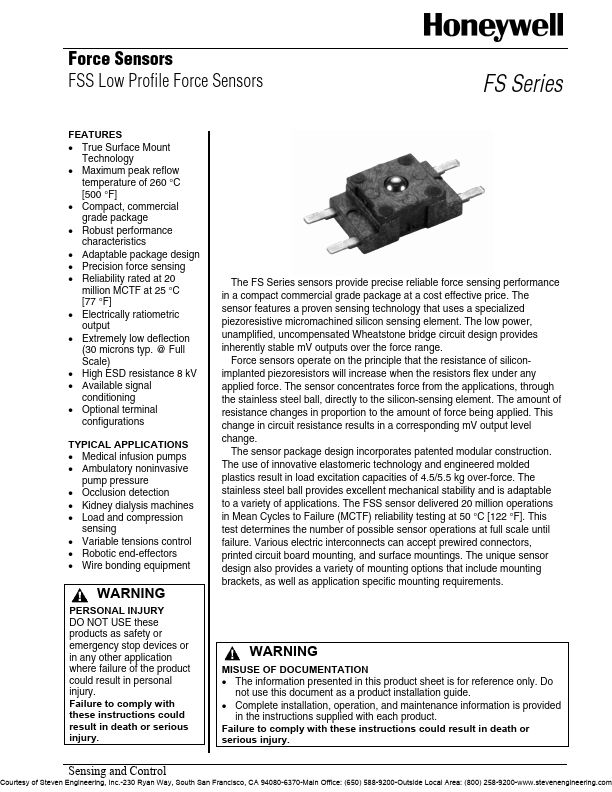

FEATURES - True Surface Mount Technology - Maximum peak reflow temperature of 260 °C [500 °F] - pact, mercial grade package - Robust performance characteristics - Adaptable package design - Precision force sensing - Reliability rated at 20 million MCTF at 25 °C [77 °F] - Electrically ratiometric output - Extremely low deflection (30 microns typ. @ Full Scale) - High ESD resistance 8 k V - Available signal conditioning - Optional terminal configurations TYPICAL APPLICATIONS - Medical infusion pumps - Ambulatory noninvasive pump pressure - Occlusion detection - Kidney dialysis machines - Load and pression sensing - Variable tensions control - Robotic end-effectors - Wire bonding equipment WARNING PERSONAL INJURY DO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury. Failure to ply with these instructions could result in death or serious injury. The FS Series sensors provide precise reliable force sensing performance in a pact mercial grade package at a cost effective price. The sensor features a proven sensing technology that uses a specialized piezoresistive micromachined silicon sensing element. The low power, unamplified, unpensated Wheatstone bridge circuit design provides inherently stable m V outputs over the force range. Force sensors operate on the principle that the resistance of siliconimplanted piezoresistors will increase when the resistors flex under any applied force. The sensor concentrates force from the applications, through the stainless steel ball, directly to the silicon-sensing element. The amount of resistance changes in proportion to the amount of force being applied. This change in circuit resistance results in a corresponding m V output level change. The sensor package design incorporates patented modular construction. The use of innovative elastomeric technology and engineered molded plastics result in load excitation capacities of 4.5/5.5 kg...
