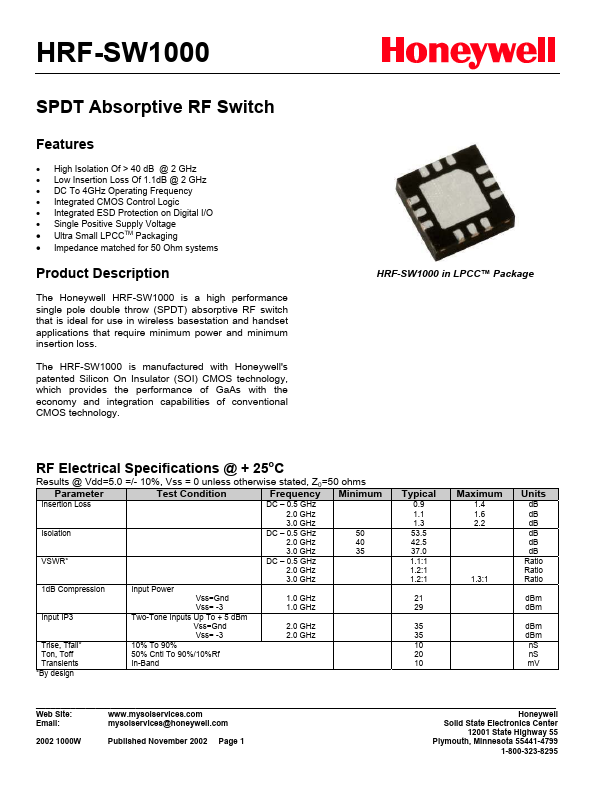

SPDT Absorptive RF Switch Features x High Isolation Of > 40 dB @ 2 GHz x Low Insertion Loss Of 1.1dB @ 2 GHz x DC To 4GHz Operating Frequency x Integrated CMOS Control Logic x Integrated ESD Protection on Digital I/O x Single Positive Supply Voltage x Ultra Small LPCCTM Packaging x Impedance matched for 50 Ohm systems Product Description The Honeywell HRF-SW1000 is a high performance single pole double throw (SPDT) absorptive RF switch that is ideal for use in wireless basestation and handset applications that require minimum power and minimum insertion loss. The HRF-SW1000 is manufactured with Honeywell's patented Silicon On Insulator (SOI) CMOS technology, which...
