V5011S1005
V5011S1005 is INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16 manufactured by Honeywell.
- Part of the V5011S comparator family.
- Part of the V5011S comparator family.

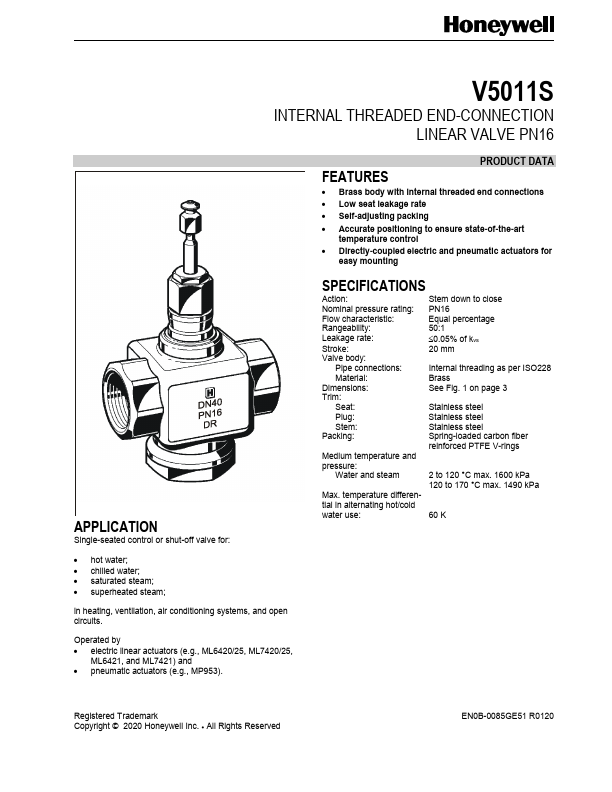

V5011S
INTERNAL THREADED END-CONNECTION LINEAR VALVE PN16
APPLICATION
Single-seated control or shut-off valve for:
- hot water;
- chilled water;
- saturated steam;
- superheated steam; in heating, ventilation, air conditioning systems, and open circuits.
Operated by
- electric linear actuators (e.g., ML6420/25, ML7420/25,
ML6421, and ML7421) and
- pneumatic actuators (e.g., MP953).
Features
PRODUCT DATA
- Brass body with internal threaded end connections
- Low seat leakage rate
- Self-adjusting packing
- Accurate positioning to ensure state-of-the-art temperature control
- Directly-coupled electric and pneumatic actuators for easy mounting
SPECIFICATIONS
Action: Nominal pressure rating: Flow characteristic: Rangeability: Leakage rate: Stroke: Valve body:
Pipe connections: Material: Dimensions: Trim: Seat: Plug: Stem: Packing:
Medium temperature and pressure:
Water and steam
Max. temperature differential in alternating hot/cold water use:
Stem down to close PN16 Equal percentage 50:1 0.05% of kvs 20 mm
Internal threading as per ISO228 Brass See Fig. 1 on page 3
Stainless steel Stainless steel Stainless steel Spring-loaded carbon fiber reinforced PTFE V-rings
2 to 120 °C max. 1600 k Pa 120 to 170 °C max. 1490 k Pa
60...
